STM32 CAN to USB

November 30, 2025 ยท View on GitHub

This is a small project for connecting a Nucleo STM32F103RB together with the SPI MCP2515 CAN module.

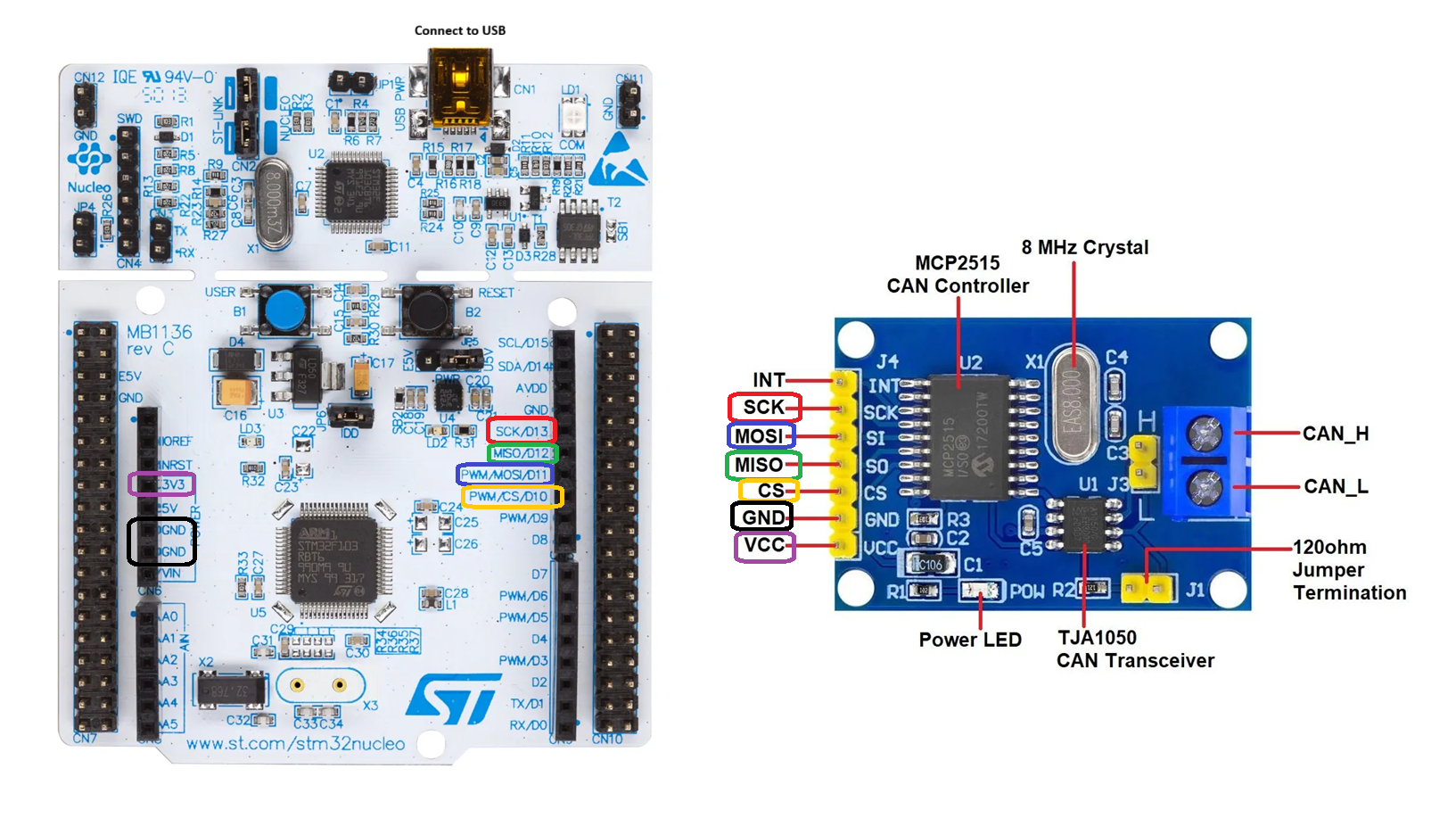

Pin configuration:

  • CAN_CS : D10 (PB6)
  • SPI_MOSI : D11 (PA7)
  • SPI_MISO : D12 (PA6)
  • SPI_SCK : D13 (PA5)

Don't forget to set the baudrate inside the C code function CANSPI_Initialize().

a

Original source: https://blog.naver.com/eziya76/221188525127
