FLIP-Fluid for Unity

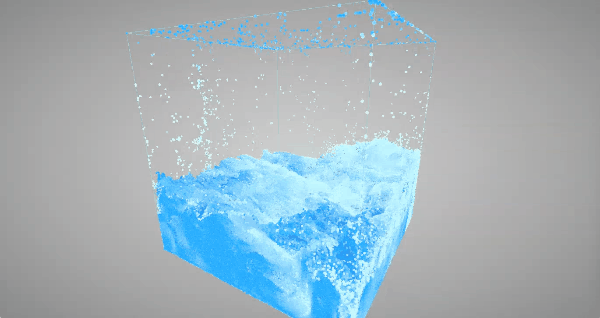

Real-time particle-based 3D fluid simulation and rendering in Unity HDRP with GPU (Compute Shader) & VFXGraph.

FLIP (Fluid Implicit Particle) Fluid Simulation

Cataclysm: a FLIP Solver with GPU Particles

• PIC / FLIP Combination (Flipness)
• Staggered MAC Grid
• Particle <-> Grid Transferring
  • Linear Kernel
  • Quadratic Kernel
• Mouse Interaction
• Viscous Diffusion
• Pressure Projection
• Particle Advection
  • Forward Euler
  • 2nd order Runge-Kutta
  • 3rd order Runge-Kutta
• Density Projection for Volume Conserving
• Interactive Camera
• Runtime UI

Movie

References

• Fluid Simulation for Computer Graphics, Second Edition
• Implicit Density Projection for Volume Conserving Liquids
• fluid
• List of Runge-Kutta methods
