Layout Index
March 30, 2017 · View on GitHub
Type is a layout property in JSON
FlowLayout
| type | Description |
|---|---|
| 1 | One column |
| 2 | Two columns |
| 3 | Three columns |
| 4 | Four columns |
| 9 | Five columns |
| 27 | any column,assign by code or style in JSON |
1-n layout (n=2/3/4)
A large element on the left ，several small element on the right，support assiging ratio of the left and right.
There are three styles of the layout：
- A large element on the left，one above one below on the right.
- A large element on the left，one above two below on the right.
- A large element on the left，one above three below on the right.
Adjust depend on the count of itemModels in the layout
| type | Description |
|---|---|
| 5 | One Drag N(N=2/3/4) |

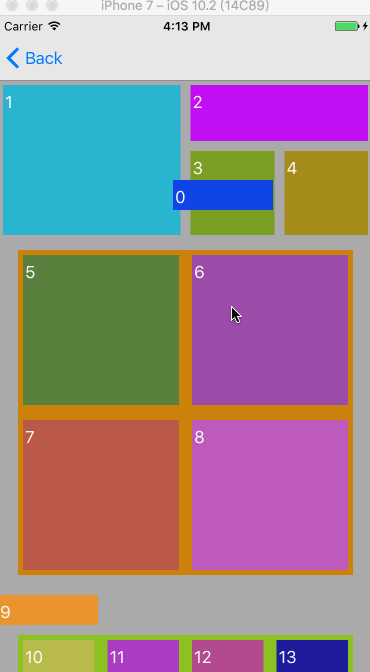

Drag Layout
The layout can be dragged, auto hit to edges
The No.0 element is in a drag layout.
| type | Description |
|---|---|
| 7 | Drag Layout |

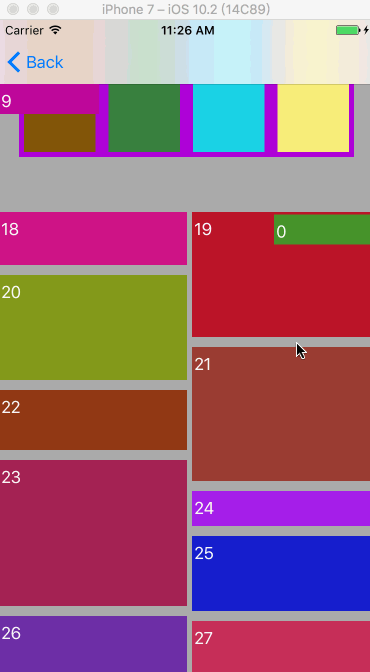

Fix Layout
Fix at fixed position, or scroll to some position to show
The No.0 element is in a fix layout.
| type | Description |
|---|---|
| 8 | Fix at top |
| 23 | Fix at bottom |
| 28 | Scroll to some layout to show and fix at top) |

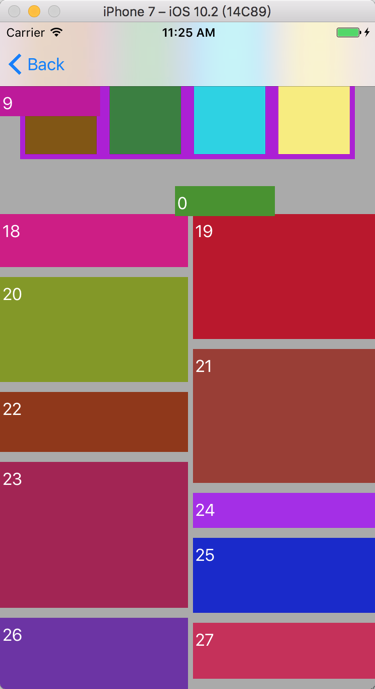

Sticky Layout
If the layout hit the top of visible area, it will stick to top edge of visible area.
The No.9 element is in a sticky layout
| type | Description |
|---|---|
| 21 | Stick to top |
Page Scroll Layout
Suitable for banner, it can auto scrolling , cycle scrolling or linear scrolling
| type | Description |
|---|---|
| 10 | Page Scroll Layout |
Water Flow Layout
| type | Description |
|---|---|
| 25 | WaterFlow Layout |
