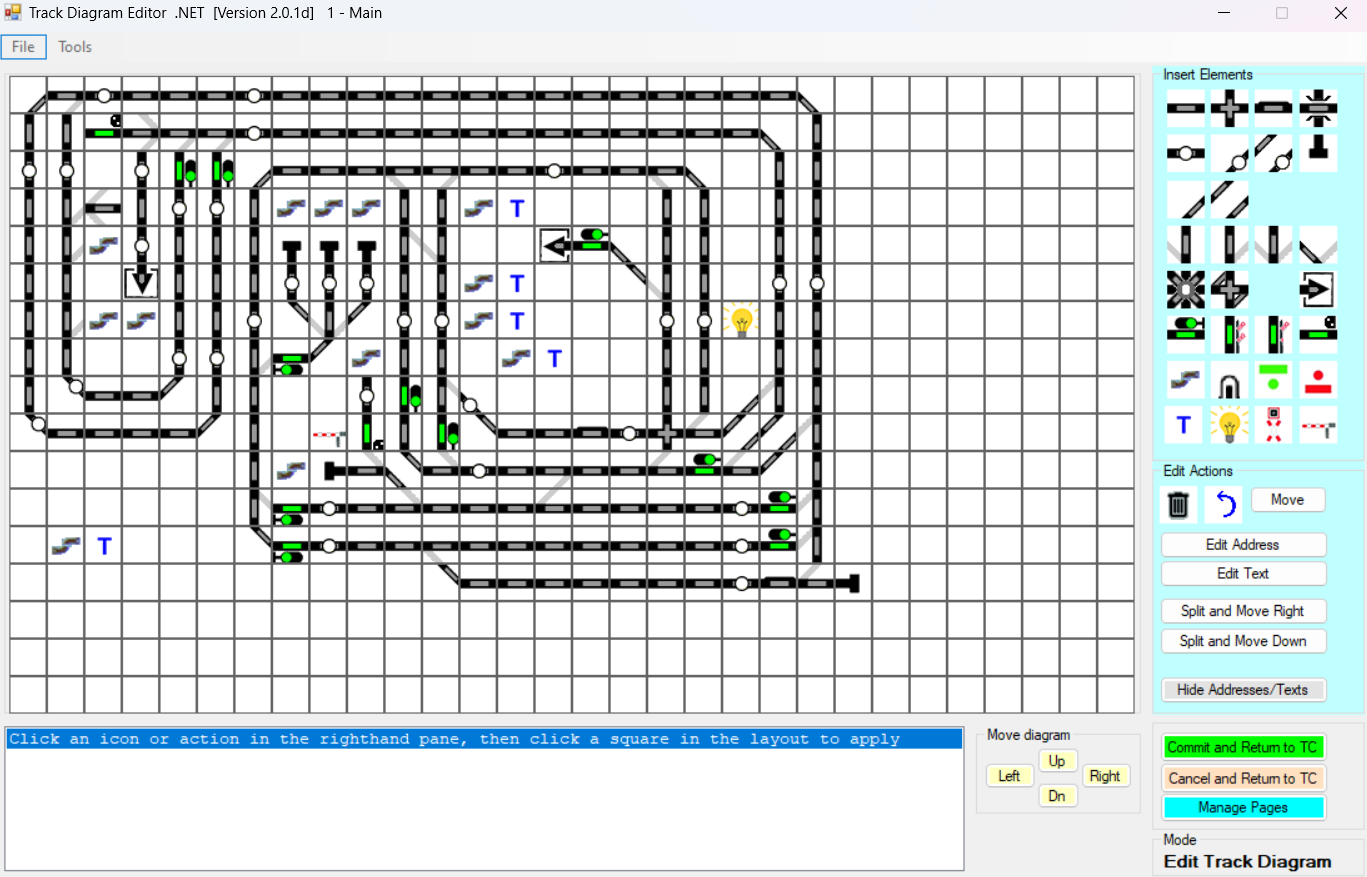

TrackDiagramEditor a Windows program for viewing and editing the "gleisbild" layout files generated by the Marklin Central Station 2.

Its primary use is to enable the editing of track diagrams when paired with the TrainControl software, a free Java app to conveniently control & fully automate large Marklin CS2/CS3 layouts using your computer / keyboard.

TrackDiagramEditor can also be used to view exported CS2 data when migrating to other controllers, such as the CS3.

Gleisbild folder structure

For reference, the layout folders created/editable by this program are structured as follows:

• /name_of_your_layout/
  • /config/
    • gleisbild.cs2
    • /gleisbilder/
      • layout page 1.cs2
      • layout page 2.cs2
      • ...
