Hypercube Etalon

This package is the Python surface for HypercubeEtalon (import hypercube_etalon). Full API reference: docs/Python_SDK.md. C++ integration guide: docs/CPP_SDK.md. Project home: github.com/dliptak001/HypercubeEtalon.

HypercubeEtalon processes spatial data of the kind presented to a CNN. It is built from three core classes.

The Etalon class wraps the other two and manages training and prediction.

The other two form a pipeline: preprocessor → readout.

The Exciter class is a preprocessing stage that consumes input patterns, mixes them nonlinearly, and returns a field with the same dimensions as the input.

The Readout class is a small HypercubeCNN that classifies or regresses that field.

This is not reservoir computing.

The point of this experiment is to see if a preprocessing stage in front of HypercubeCNN outperforms HypercubeCNN by itself. HypercubeWTF has the same goal; it just does it a slightly different way, using a reservoir with synthetic time, whereas here the preprocessor is an etalon. The aim is a hypercube preprocessor effective enough that the readout can be a single layer with a single convolutional channel (weird, I know) and no pooling. Then training is fast, the memory footprint is small, and little to no architectural engineering is required for the CNN.

---

HypercubeAI ecosystem

HypercubeCascade  ·  HypercubeCNN  ·  HypercubeESN  ·  HypercubeEtalon  ·  HypercubeHopfield  ·  HypercubeLCN  ·  HypercubeWorldModel  ·  HypercubeWTF

📄 Foundational paper: Boolean Hypercubes as a Neural Substrate (D. C. Liptak, 2026)

HypercubeEtalon is an experiment in the HypercubeAI project — our quest to systematically re-implement classical neural architectures on a Boolean hypercube topology instead of Euclidean grids or random graphs. The central thesis is “topology-native intelligence”: the hypercube’s algebraic structure (vertex-transitive symmetry, Hamming geometry, bitwise addressing) can serve as a first-class computational substrate.

• A topology you don’t store — the graph is specified: connectivity is implicit in the vertex indices; with a seed and a few config scalars the whole reservoir reconstructs mathematically.
• Perfect homogeneity — every vertex has the same degree and the same local world, so local dynamics mean the same thing everywhere — no structural favorites baked in by a random graph.
• Cheap navigation — each neighbor is a few bit operations on the vertex index, not a pointer chase through a stored edge list, so walks stay arithmetic and cache-friendly.
• Topology-native pairing — the readout consumes the reservoir’s output with zero geometric distortion, and the learned kernels exploit the same locality that generated the dynamics. The data never leaves the hypercube it was born on.

Each product in the family is a different architecture on that same foundation.

---

The Etalon

I now suspect that the hypercube will someday be recognized as the most natural (least contrived) and at the same time the most powerful neural network substrate that can possibly be realized.

The Etalon construct is just another example of how incredibly elegant solutions can be built on that substrate.

Etalon is a term borrowed from optics. The physical etalon is a pair of plane-parallel, highly reflective surfaces (mirrors) between which an optical signal propagates. It is used for laser resonators, interferometric measurement, and filtering.

On the hypercube, an etalon is a pair of vertices: any vertex and its antipode. A hypercube has N vertices and therefore N etalons on the full cube. There are far more than N once the cube is subdivided into subcubes, each of which carries its own set of etalons.

The HypercubeEtalon design treats a vertex and its antipode as a reflective cavity. All vertices in between contribute to the evolution of an input signal. That procedure is an etalon transit. It goes something like this.

LOOP:

    Pick a vertex r and its antipode r'. This defines an etalon.

    Copy the input field onto the cube. That overlay is the initial
    condition, and it is the same for every etalon.

    Starting at r, form the weighted sum of its nearest neighbors
    and write tanh of that sum into r.

    Move to the next vertex along the etalon, form the neighbor
    sum, and write tanh of that sum into that vertex.

    Order is causal: a later vertex sees values the earlier ones
    just wrote.

    Continue until the transit reaches the antipode r', then turn
    around and go back to the starting vertex.

    The starting vertex is then updated for the second time. That
    is its final value, which is copied to an output buffer.

    For that etalon the task is done.

GOTO LOOP

The loop repeats until every vertex (every etalon) has been processed, which fully populates the output buffer.

---

White noise filter

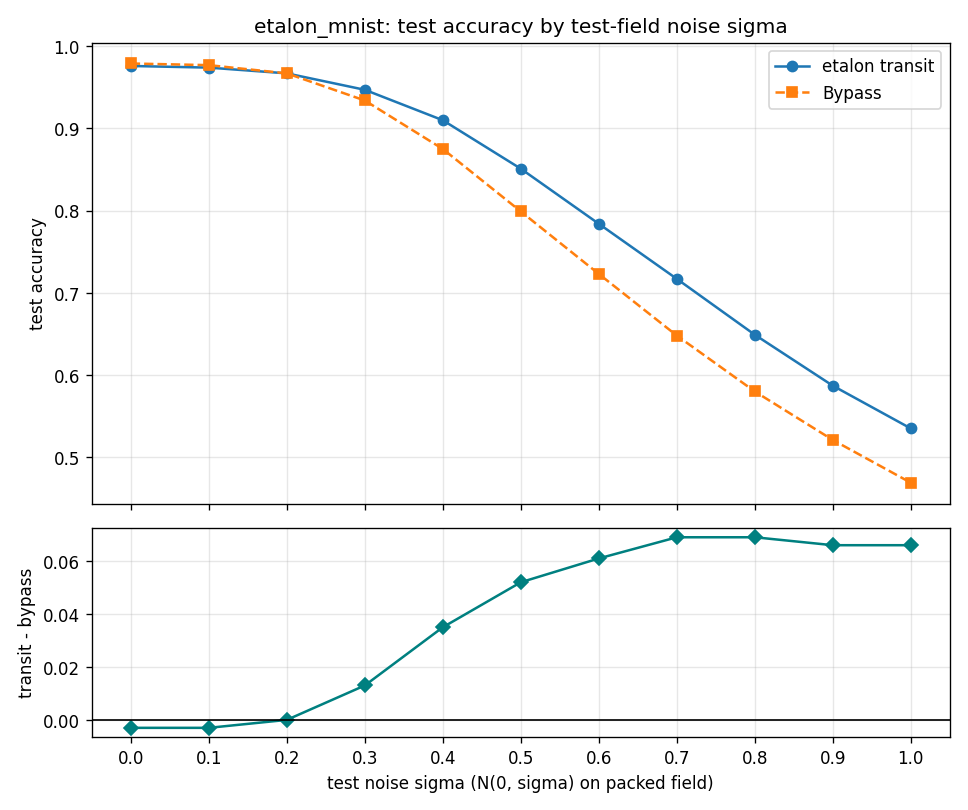

The etalon preprocessor behaves as a near unity passthrough at low to no white noise levels, and offers a meaningful filtering effect at moderate to high noise levels. The write-up is examples/mnist/WhiteNoiseFilter.md.

Raman baseline extraction (a vibrational spectroscopy application)

The first real-world test is Raman spectra: recover the slow fluorescence background under sharp molecular peaks without lifting the baseline into the bands or cutting trenches beneath them. Polynomials, asymmetric least squares, and ordinary convolutional nets tend to follow the empty stretches well and then fail where it matters, under peaks and peak clusters. Analysts have worked around that for decades with spectrum-specific cleanup, because no method identifies and extracts a true baseline across a broad range of peak intensities and baseline characteristics without occasional, and often frequent, human intervention.

The Etalon appears to have solved that problem (albeit on synthetic data only so far).

Trained for 60 epochs on the LCOHard set — 10,000 synthetic LiCoO₂ (lithium cobalt oxide) spectra — it scores a validation RMSE of 4.77 counts on 2,000 held-out spectra whose baselines span hundreds of counts.

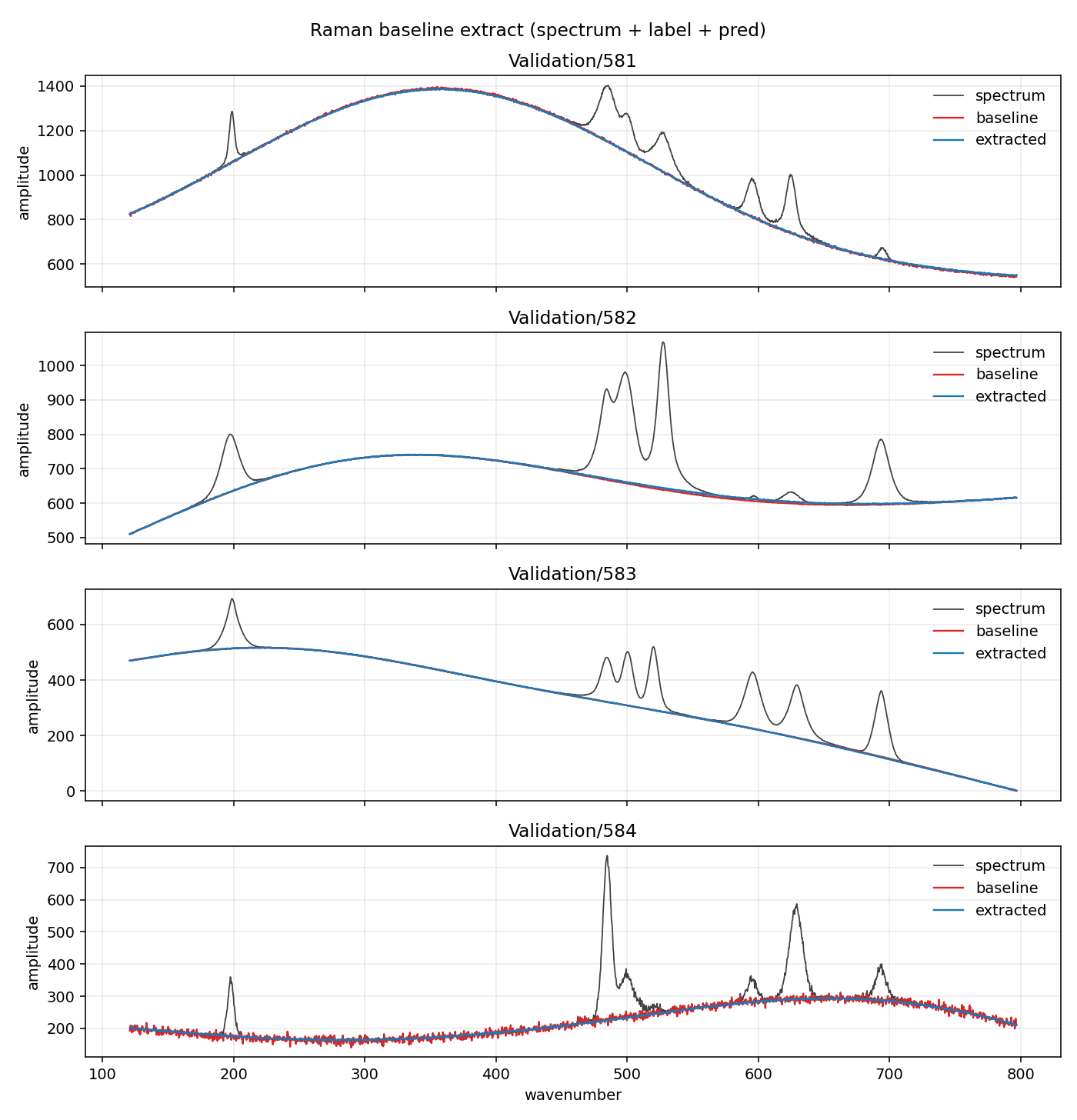

Below are four held-out validation spectra: grey is the raw spectrum, red the true baseline, blue the extract. For all four shown here, and for each of the remaining 1996 validation spectra not shown, baseline identification is, WITHOUT EXCEPTION, quite remarkable.

And it does this with the thin readout the project aims for: one HypercubeCNN layer, one convolutional channel, no pooling.

In our judgment this at least matches the best of the established techniques on spectra like these, and very likely beats them.

Three hosts, one floor

The Etalon is the whole preprocessor here: one transit, then the readout. On spectra like these that is already enough.

Two siblings have now run the same task with the same readout, the same 60-epoch budget, and the same split. The two-stage (HypercubeCascade) puts a frozen HypercubeWTF reservoir behind this very transit and scores 4.82. The reservoir-only (HypercubeWTF) runs that reservoir alone, with the normalized spectrum as its drive, and scores 4.76. Three preprocessors that share no mechanism — a transit, an orbit, and the two in series — carry the same one-layer, one-channel readout to the same floor, and their overlays are indistinguishable from the ones shown.

Real spectra, however, are not nearly this clean. Low laser power, short integration times, and weak scatterers all put noise on the spectrum, and that is where a baseline extractor has to earn its keep.

That is where the hosts should separate. The Cascade's MNIST white-noise study (examples/mnist/WhiteNoiseFilter.md) found the two-stage path pulling ahead of the Etalon alone from moderate noise up, and WTF's own study (examples/mnist/WhiteNoiseFilter.md) found its reservoir a filter that holds accuracy as the noise rises.

That is the next experiment.

The overlay, the training profile, and the three-host comparison are in examples/RamanBaselineExtraction/.

Runnable programs live under examples/.

The Raman spectra themselves (about 1 GB) are not in this repository.

Installation

Preferred: install a pre-built wheel from PyPI (no compiler).

pip install hypercube-etalon

import hypercube_etalon as he
print(he.__version__)

Package name on PyPI: hypercube-etalon. Import name: hypercube_etalon. Main type: he.Etalon.

Wheels target Python 3.10–3.14 on common Windows, Linux, and macOS machines. Runtime dependency: NumPy only.

From source (full repository)

To compile the extension yourself, clone this entire repository (not a minimal source-only download of the python/ folder alone — the C++ core and vendored HypercubeCNN live next to python/). You need Python 3.10+, a C++23 compiler, and CMake ≥ 3.20.

git clone https://github.com/dliptak001/HypercubeEtalon.git
cd HypercubeEtalon/python
pip install .

On Windows with CLion’s MinGW, put that compiler’s bin folder (and Ninja) on your PATH, then:

pip install . --no-build-isolation --force-reinstall --no-deps

(Exact CLion paths change with the version.) Step-by-step toolchain notes: docs/Python_SDK.md.

---

Quick start

You bring each sample as a length-N float array (N = 2^dim). How you get there — pad an image, reshape a spectrum, invent a layout — is up to you. This package does not pack 784 pixels or 300 bins for you.

Shapes that matter:

Array	Shape	Notes
fields	(count, N)	one length-N field per row
labels (classification)	(count,)	integer class indices
targets (regression)	(count, num_outputs)	float targets

import numpy as np
import hypercube_etalon as he

dim = 7
N = 2**dim
rng = np.random.default_rng(0)
fields = rng.standard_normal((200, N), dtype=np.float32)
labels = rng.integers(0, 4, size=200)

et = he.Etalon(
    dim=dim,
    exciter_subcube_dim=5,
    exciter_input_scaling=1.0,
    exciter_weight_scaling=0.15,
    readout_num_outputs=4,
    readout_task="classification",
    readout_epochs=80,
)
et.fit(fields, labels)  # collect_batch + train

print(et.N, et.subcube_dim, et.num_collected)
print(f"train sanity check: {et.accuracy_on_collected():.3f}")
print(et.predict_class(fields[0]), et.predict(fields[0]).shape)

et.save("model.pkl")
loaded = he.Etalon.load("model.pkl")

Step by step (same loop, more control)

et = he.Etalon(
    dim=7,
    exciter_subcube_dim=5,
    exciter_input_scaling=1.0,
    exciter_weight_scaling=0.15,
    readout_num_outputs=4,
    readout_task="classification",
)
et.collect_batch(fields_train, labels_train)
et.train()
logits = et.predict(fields_test[0])       # (num_outputs,) float32
cls = et.predict_class(fields_test[0])    # int
test_acc = et.accuracy(fields_test, labels_test)  # held-out, fresh maps

For regression, set readout_task="regression" and pass float targets instead of class labels. Then use r2_on_collected() / r2(fields, targets) the same way.

accuracy_on_collected and r2_on_collected only look at the samples you already trained on — they are a quick sanity check, not a test score. For real evaluation, hold fields out and call accuracy / r2 (or predict / predict_class yourself).

---

Features

• One class — hypercube_etalon.Etalon is the whole product surface
• Map loop — collect / collect_batch → train → predict / predict_class
• fit — clear, collect, and train when your arrays are ready
• dim 4–12 — field length N = 2^dim; etalon face exciter_subcube_dim
• Three gains — exciter_input_scaling (field → transit), exciter_weight_scaling (neighbor-weight amplitude), and readout_scale (transit → readout); the demos run ~1.0, 0.15–0.5, and 1.0 (the header defaults 0.02 barely drive tanh)
• Built-in ablation — bypass_exciter=True feeds the raw field to the same readout
• Classification or regression — readout_task fixed at construction
• Held-out scoring — accuracy(fields, labels) / r2(fields, targets) map fresh in bulk
• Bulk calls can parallelize — collect_threads (0 = auto)
• Inspect a map — run(x) then last_features() for gain tuning
• Save / load — save / load (pickle: config + readout weights; collected samples are not stored). Optional save_readout_hcnn_model / load_readout_hcnn_model for portable HCNW + arch JSON
• NumPy float32 — arrays converted for you; prefer contiguous float32

---

Examples

For a first try, paste the Quick start after pip install hypercube-etalon. That is self-contained.

If you want a longer walk-through, the demo scripts on GitHub under python/examples/ are there to open or download — they are not added to your machine by pip.

Script	What it is for
synthetic_classification.py	Multi-class toy fields: fit, then train and test accuracy

# from a clone of HypercubeEtalon, after: pip install hypercube-etalon
python python/examples/synthetic_classification.py

These use easy made-up fields so the API is obvious — not scores to publish. More notes: python/examples/README.md.

---

Documentation

Doc	Role
docs/Python_SDK.md	Canonical Python API — every method, layout, pickle, limits
python/examples/README.md	Demo scripts on GitHub
Project README	Product story and C++ demos from the repo root
docs/CPP_SDK.md	Native library guide (same product, C++)
WhiteNoiseFilter.md	Early white-noise study (MNIST as a test bed)

---

Ecosystem

• HypercubeCascade: two frozen stages in series plus a thin readout.
• HypercubeCNN: cube-native conv stack with shared kernels.
• HypercubeESN: echo-state reservoir computing on streams.
• HypercubeEtalon: frozen etalon transit plus a thin readout.
• HypercubeHopfield: Hopfield-style dynamics on the cube.
• HypercubeLCN: the locally connected net, every weight trained.
• HypercubeWorldModel: frozen WTF encoder + trained LCN predictor and decoder.
• HypercubeWTF: frozen reservoir orbit plus a thin readout.

---
