MTUI - Modbus Terminal User Interface

A very extensive Modbus client available in pretty much any terminal.
Made in pure safe Rust, based on tokio-modbus and ratatui (with ratzilla for the web demo).

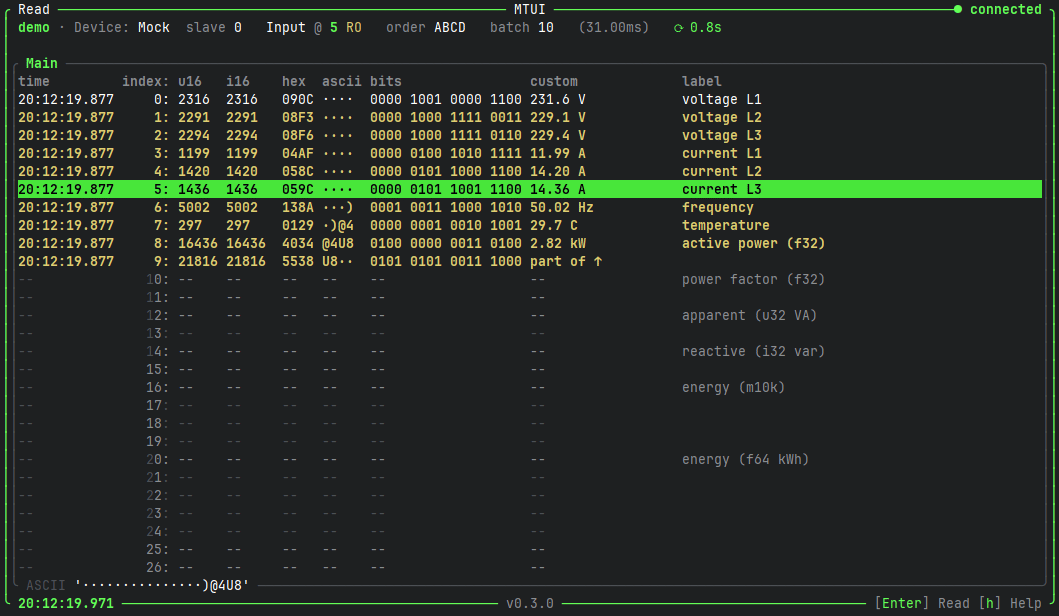

Play the GIF to see a quick tour, or better yet, try it in your browser (mock device only): https://inowattio.github.io/MTUI/

Features

• Modbus TCP and RTU, plus a built-in mock device for playing around
• Live register reading with auto-refresh, pause/resume and slave id selection
• Interpretation columns with configurable word order: u16, i16, hex, binary, ASCII, u32, i32, f32, f64, M10K (and more!)
• Panels: main view, pinned, labeled, custom rules and an address matrix
• Pin, label and custom-rule registers; jump to address or label
• Value graph for a register over time
• Register writes, with a write log and an optional read-only mode
• HTTP API (POST /read, POST /write, GET /health, see openapi.yaml, can run standalone with --headless)
• Dump read data to a file, copy addresses to the clipboard
• Configurable via files, a user-located config.json file will be created on the first startup (~/.config/mtui/ on Linux, %APPDATA%\inowattio\mtui\config\ on Windows, ~/Library/Application Support/io.inowattio.mtui/ on macOS), overridable with --config <path> and can also be modified in-app.

Press h inside the app for all available keybinds.

Running

Multiple options are available:

• (Linux) install via snap install mtui
• download a binary from releases
• with cargo via cargo install mtui
• clone the repository and then cargo run
