daegun

Your all-in-one text engine. Rust, no_std, zero dependencies.

Documentation · MIT · Rust 1.97.1 or newer · Rust API and C ABI

What it is

daegun turns a font file and a string into positioned, rasterized glyphs. It parses TrueType and OpenType, shapes complex scripts, breaks and lays out lines, hints, rasterizes on the CPU or the GPU, and subsets a font down to the glyphs a page actually uses. One crate does all of it, and a C ABI sits alongside the Rust API rather than behind it.

There are no dependencies at all, so the supply chain is the Rust compiler and nothing else. The parsers and the shaper forbid unsafe code outright, enforced by the compiler rather than by discipline: a font file is data from strangers, and daegun treats it that way.

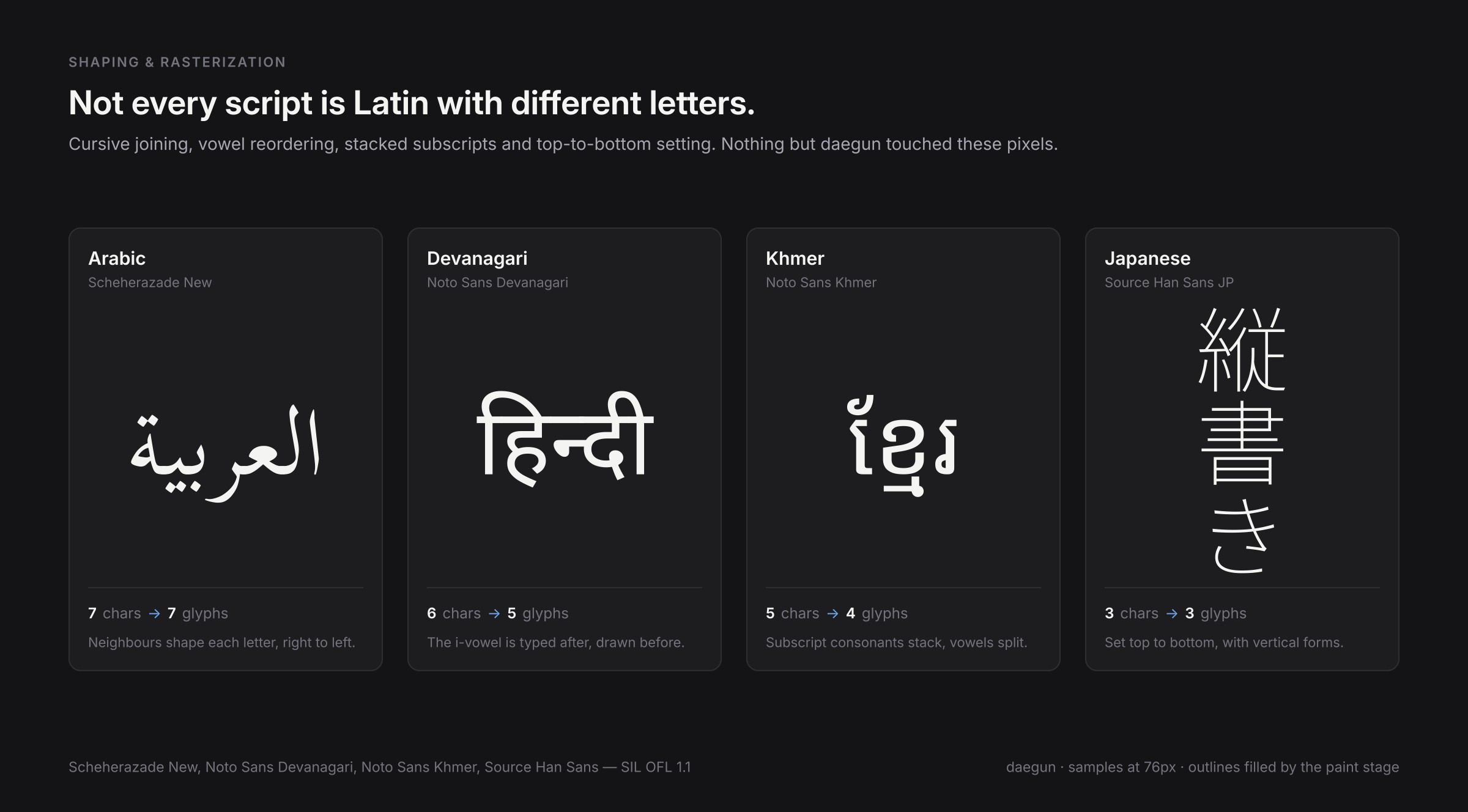

Global scripts

Arabic joins and runs right to left, Devanagari draws a vowel before the consonant it was typed after, Khmer stacks subscripts under the base, and Japanese sets top to bottom. daegun drew all of it, the cards and the words on them included.

What it supports

Outlines	TrueType glyf, CFF, CFF2, and variable fonts on any number of axes
Color	COLR v0 and v1 paint graphs, CPAL palettes, and sbix and CBDT bitmap strikes
Shaping	GSUB and GPOS in full, Apple morx and kerx, and shapers for Arabic, Hebrew, Thai, Hangul, Khmer, Myanmar, nine Indic scripts and 84 more through the Universal Shaping Engine
Text	Bidi, line breaking greedy or optimal, justification, vertical writing, math
Rasterizing	CPU everywhere, and GPU through Metal on Apple platforms, Direct3D 11 and 12 on Windows, and Vulkan anywhere
And	Subsetting to the glyphs a page uses, TrueType and CFF hinting, an autohinter, and collections

Installing

Rust:

[dependencies]
daegun = "1.1.7"

C: build the library in the shape you want. The ABI is behind the capi feature, which implies threading.

cargo rustc --release --features capi --crate-type staticlib  # libdaegun.a, daegun.lib
cargo rustc --release --features capi --crate-type cdylib     # libdaegun.dylib, .so, .dll

Then compile against src/c-wrapper/daegun.h. A static library needs the platform frameworks the GPU backends call into, and a shared one carries its own:

macOS, iOS	cc app.c libdaegun.a -framework Metal -framework Foundation -framework QuartzCore
Linux	cc app.c libdaegun.a -lm -lpthread -ldl
Windows	cl app.c daegun.lib ws2_32.lib userenv.lib ntdll.lib

Vulkan and Direct3D are opened by name at run time, so neither adds anything to link. A machine without them answers DAEGUN_UNSUPPORTED rather than failing to load.

The Rust API

Open a font, shape a string, rasterize what comes back. That is the whole loop.

use daegun::Font;

let bytes = std::fs::read("Inter.ttf")?;
let font = Font::from_bytes(&bytes)?;

let shaped = font.shape("Wave", &[], false).expect("shapes");
// glyphs [459, 507, 980, 614], advances [934.6, 546.9, 542.5, 583.0]

let glyph = font.rasterize_glyph(shaped.glyphs[0], 32.0, &[]).expect("has ink");
// 31x24 coverage bytes at (0, 0), one per pixel, advance 15.4px

Advances come back on a 1000 unit em whatever the font's own units are, so a pen position is advance * px / 1000.0. Outlines are in the font's units instead, which Font::upm reports. That difference is deliberate and it is the one thing worth reading twice.

Variable axes go to any call that takes them, as (tag, value):

let bold = font.shape("Wave", &[("wght", 700.0)], false).expect("shapes");
let glyph = font.rasterize_glyph(gid, 32.0, &[("wght", 700.0), ("opsz", 28.0)]);

RasterOptions carries the rest, and is a builder so you name only what you change:

use daegun::{HintMode, RasterOptions};

let opts = RasterOptions::default().with_hinting(HintMode::Auto).with_gamma(1.8);
let glyph = font.rasterize_glyph_with(gid, 32.0, &[], &opts).expect("has ink");

Also on it: with_layout for subpixel stripes, with_transform for an affine, with_stroke, with_embolden, with_oblique.

Laying out a paragraph wraps, breaks and positions in one call. Sizes are on the same 1000 unit em, so divide by px / 1000.0 going in and multiply coming out:

use daegun::{Align, BreakStrategy, LayoutOptions};

let px = 16.0;
let scale = px / 1000.0;
let layout = font.layout(text, &[], &LayoutOptions {
    max_inline_size: 240.0 / scale,
    line_height: Some(20.0 / scale),
    strategy: BreakStrategy::Optimal,
    align: Align::Start,
    ..LayoutOptions::default()
}).expect("lays out");

for line in &layout.lines {
    for run in &line.runs {
        // run.run.glyphs, run.run.advances, run.offset
    }
}

BreakStrategy::Greedy breaks at the last opportunity that fits; Optimal searches the paragraph.

Subsetting takes the text rather than glyph ids, so it shapes first and keeps what shaping produced:

let subset = font.subset_text("Type is the voice of the page.", &[])?;
std::fs::write("subset.ttf", &subset.ttf)?;
// 879,708 bytes to 15,800

The result carries a real cmap, so it loads straight into @font-face. Font::subset takes glyph ids instead when you already know them.

A COLR glyph renders to a scene rather than a coverage map, since it has more than one color in it:

let scene = font.render_colr_glyph(gid, 48.0, &[], 0).expect("is a color glyph");
// scene.width, scene.height, scene.rgba: straight alpha RGBA8

The GPU path hands you data instead of drawing, because owning a device needs unsafe and the engine does not:

use daegun::GpuBatch;

let mut batch = GpuBatch::new();
let slot = font.gpu_glyph(&mut batch, gid, &[])?;
// batch.curves(), batch.bands(), batch.band_curves(), batch.hulls() go to the GPU
// slot.instance(offset, scale, em_pixels, tint) makes one GlyphInstance

Shader source for GLSL, HLSL and MSL ships with the crate. Backends for Metal, Vulkan, D3D11 and D3D12 live under daegun::gpu if you would rather daegun drove the device. Each one can adopt a device you already made and draw straight into your swapchain surface, so a real-time app never pays for a readback.

That is the shape of it. All 223 methods and 49 types are written up at dg.calia.cc, each with what it returns, what it does when it cannot, and the units it answers in.

The C API

Everything the Rust API does, C does. src/c-wrapper/daegun.h is the contract, and it states five rules that hold for every call: a fallible call returns daegun_status and answers through an out parameter, NULL where a pointer is required returns DAEGUN_NULL and is never dereferenced, daegun allocates and daegun frees, a borrowed view lasts until the handle it came from is freed, and handles are thread safe.

The same loop:

#include "daegun.h"

daegun_font *font = NULL;
if (daegun_font_open(data, len, &font) != DAEGUN_OK) return 1;

daegun_run *run = NULL;
daegun_font_shape(font, "Wave", NULL, 0, /* vertical */ false, &run);

size_t n = 0;
const uint16_t *gids = daegun_run_glyphs(run, &n);
const double *advances = daegun_run_advances(run, &n);

daegun_bitmap *bmp = NULL;
daegun_font_rasterize_glyph(font, gids[0], 32.0f, NULL, 0, &bmp);

daegun_metrics m;
daegun_bitmap_metrics(bmp, &m);
size_t pixels_len = 0;
const uint8_t *pixels = daegun_bitmap_pixels(bmp, &pixels_len);
/* m.width x m.height, one coverage byte each */

daegun_bitmap_free(bmp);
daegun_run_free(run);
daegun_font_free(font);

Axes are an array of daegun_axis, and every call that takes them takes a count beside them:

daegun_axis axes[] = { { "wght", 700.0 }, { "opsz", 28.0 } };
daegun_font_shape(font, "Wave", axes, 2, false, &run);

Subsetting mirrors the Rust call, and the bytes are borrowed until the subset is freed:

daegun_subset *subset = NULL;
daegun_font_subset_text(font, "Type is the voice of the page.", NULL, 0, &subset);

size_t ttf_len = 0;
const uint8_t *ttf = daegun_subset_ttf(subset, &ttf_len);
fwrite(ttf, 1, ttf_len, out);
daegun_subset_free(subset);

daegun_font_rasterize_glyph_with takes a daegun_raster_options, and passing NULL for it means the defaults, so you need not build the struct to get them. Layout, color, the GPU batch and the four backends all have their C forms; the header groups them and says what each borrows.

The 440 functions, 86 types and 217 constants are all documented at dg.calia.cc, including which pointers are borrowed and how long each stays valid.

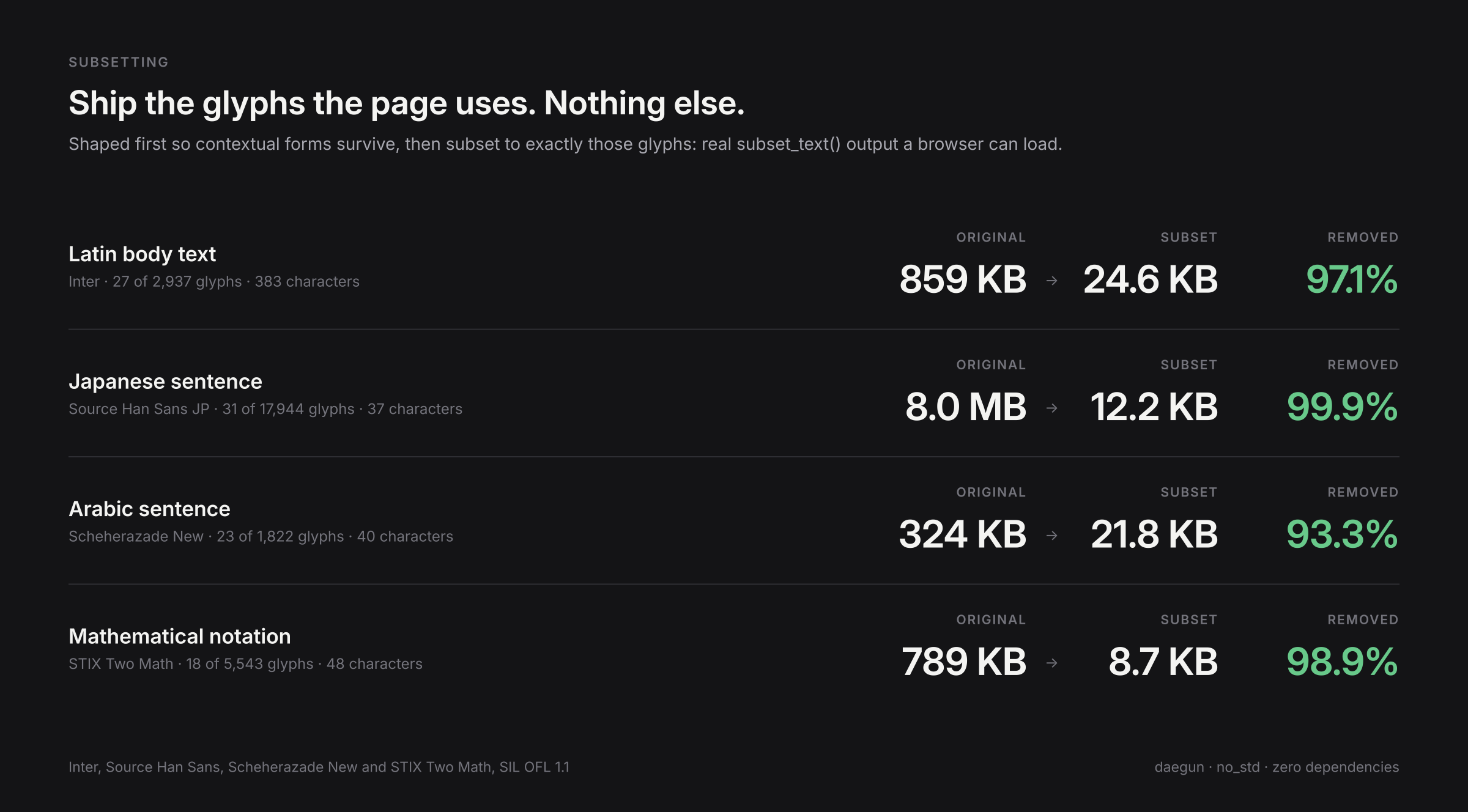

Subsetting

A page of Japanese wanting 37 characters ships 12.2 KB rather than 8.0 MB. Each row is shaped before it is subset, so the glyphs that joining and ligatures actually produced survive and the rest goes.

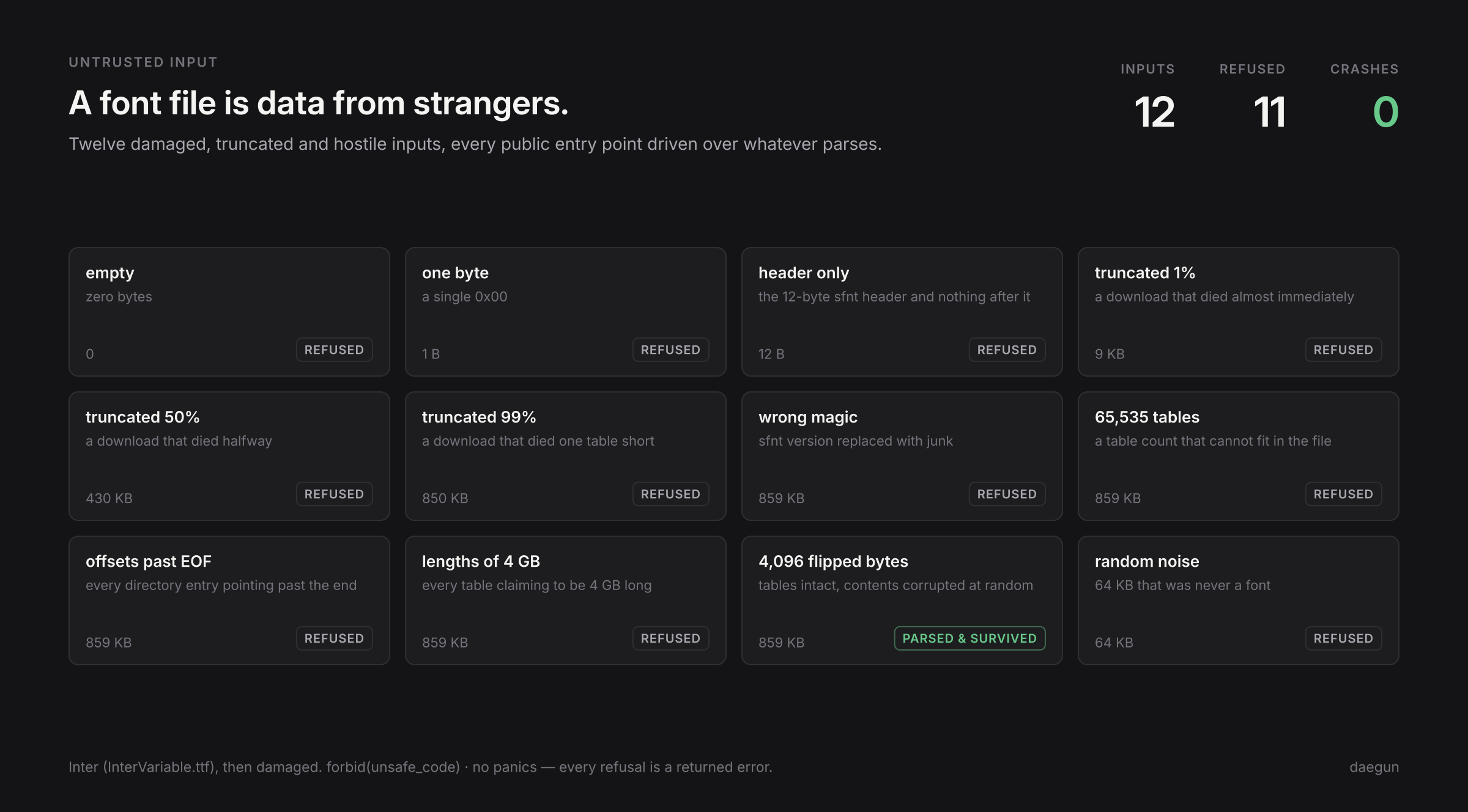

Untrusted input

Each of those is handed to every public entry point that will take it. Eleven are refused with an error, the twelfth parses and is then driven over anyway, and none of them crashes or panics.

What holds it up

Dependencies	None at all, so the supply chain is the Rust compiler and nothing else.
Unsafe code	Forbidden in every parser and in the shaper. The compiler enforces it: an inner allow is a hard error rather than a warning. Only the GPU backends and the C layer opt back in, and they say so at the top of their own files.
C ABI	Every call in the Rust API is reachable from C bar a handful that would be pointless there, and the header matches the library's own symbol table in both directions. The build fails if either stops being true.
Hostile input	500 mutated fonts on every build, each one reproducible from its seed.
Sanitizers	The C round trip runs under AddressSanitizer and UndefinedBehaviorSanitizer.
Panics	unwrap and expect are linted against outside tests, and the library is built with panic = "abort", so it never unwinds into a caller.

One command runs all of it, along with the tests, clippy, the shader compilers, two cross-compiled Windows targets, and the minimum supported Rust version:

sh scripts/tools/perf/gate.sh

dg.calia.cc documents every name in both APIs, which is what keeps this file a tour rather than a reference. SECURITY.md sets out the threat model and how to report a vulnerability. benchmark.md carries every latency benchmark in the tree, with the machine and build they were measured on.

License

MIT. See LICENSE.
