Compiler Architecture

Project Overview

The Hylo compiler is written in Swift and uses LLVM as its code generation backend. It conforms to the the standard swift project layout:

• Package.swift the manifest file used by SPM
• Sources all the source code for the compiler
• Tests all the test code

Then there are some extra directories specific to the Hylo project:

• Tools Scripts to aid in development
• Examples Some real world Hylo programs
• StandardLibrary The Hylo standard (and core) library

Stages of compilation

The Hylo compiler goes through the standard stages of compilation:

Stage	Description	Important files
Tokenisation	Transforms Hylo source code (Strings) to a stream of distinct tokens	Lexer.swift, Token.swift
Parsing	Creates an abstract syntax tree from the token stream	Parser.swift
Type-checking	Inspects the abstract syntax tree for type errors	TypeChecking, TypeChecker.swift
IR-lowering	Generates the intermediate representation from the abstract syntax tree	IR, Emitter.swift
LLVM IR generation	Convert Hylo IR into LLVM IR	Transpilation.swift, Swifty-LLVM
Machine Code Generation	This is completely handled by LLVM

These top-level stages of the compiler are laid out in Driver where you can see the outline of the compilation phases with their entry points. Depending on the flags passed to the compiler, it can exit early at some of these stages.

Interesting parts

Most of the compiler does what you'd expect from the compiltion stages above but some are worth a deeper look:

Abstract syntax tree

The abstract syntax tree is made up of an append-only array that produces NodeID objects as indices into the array. The NodeID allows nodes to refer to other nodes using their NodeID. NodeID is generic over node types and allows us to constrain which nodes are allowed as leaves of other nodes.

The use of NodeID types as indices into an array allows us to define the existence of a node, by its NodeID, without providing access to the node. For access you still need the array. This is in contrast to traditional references that provide existence AND access without allowing separation.

The use of NodeID types are ubiquitous and is often aliased to .ID of a new type (e.g., FunctionDecl.ID).

Program Protocol

After the AST is created the compiler creates property maps that associate properties to the nodes of the AST. Currently there are two distinct phases of property creation for these property maps. The first is creating the connections between scopes and nodes, stored in the ScopedProgram struct. The second is where the majority of the type-checking happens, associating a type for each expression, declaration etc. Each of these stages is composed of the previous stage:

AST < ScopedProgram < TypedProgram < IR/Program

A successfully created TypedProgram means the Hylo program is well typed.

Hylo IR

The Hylo IR is composed of instructions defined in the Instruction module. The Emitter is the component responsible for creating the IR and inserting it into the IR/Module, module-by-module and creating an IR/Program.

The Hylo IR is only valid after it has gone through some mandatory passes defined in Module+* files of IR/Analysis. After these passes the IR should be valid and executable by a theoretical Hylo VM. Some more passes may be necessary depending on the target.

Important compiler modules

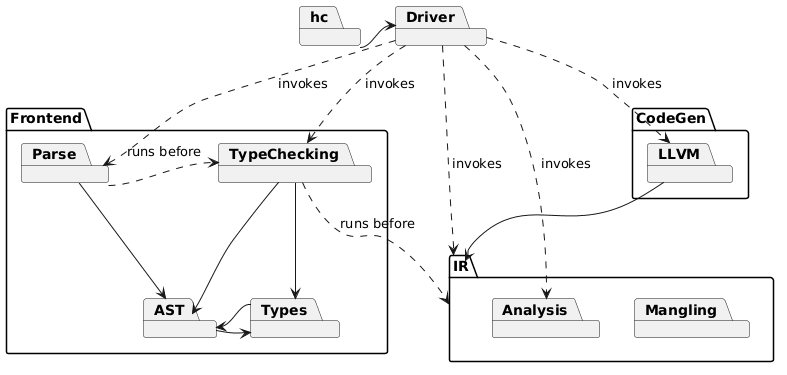

Legend:

Item	Meaning
package	A folder in the source repository
solid arrow	Dependency
dotted arrow	phase invocation / "runs before" relations

Packages:

Package	Description
hc	The actual compiler executable. Just calls Driver.
Driver/	Defines and executes the stages of the compiler. Takes care of compiler arguments.
FrontEnd	The frontend of the compiler. Handles lexing, parsing and type checking. Also stores the AST representation of the program.
AST/	The structures used to describe the abstract syntax tree of the input program.
Parse	The lexer and the parser for the Hylo source files.
TypeChecking	Implements the type checking of the Hylo programs.
Types	Defines the possible types that a Hylo entity might have.
IR	Defines the intermediate representation of Hylo programs, and the operations associated with it.
Analysis	The analysis phases that can be run on the IR.
Mangling	The name-mangling algorithm used by Hylo.
CodeGen	Implements the code-generation phase for Hylo compiler. Currently only implements LLVM code generation.
LLVM/	The code generation into LLVM.
