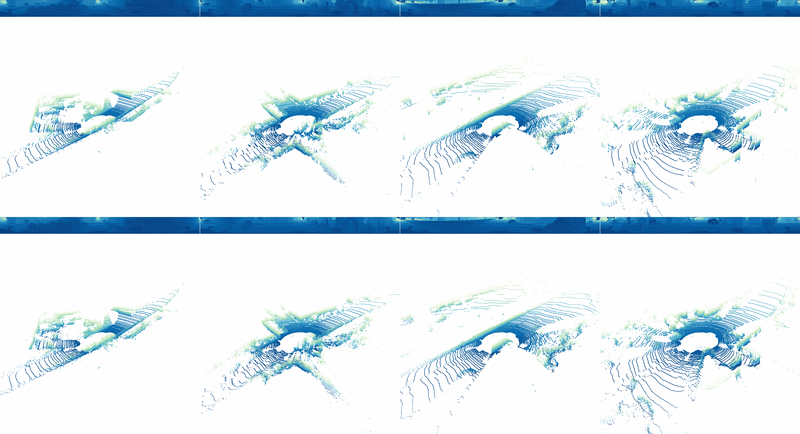

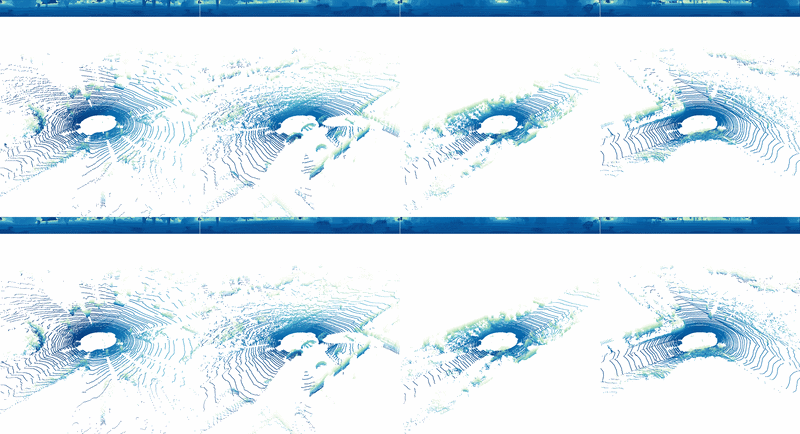

64 line reconstruction and generation. The first row is the ground truth, and the second row is the prediction.

1. Environment Setup

conda env create -f environment.yaml
conda activate gem

Note: mamba-ssm may require CUDA 12.1 and a compatible GPU. Make sure your CUDA driver version matches before installing.

---

2. Dataset Preparation

This project uses the KITTI Odometry dataset. Download the velodyne laser data and calibration files and organize them as:

kitti_odometry/dataset/
├── sequences/
│   ├── 00/
│   │   ├── velodyne/       # raw .bin point cloud files
│   │   └── calib.txt
│   ├── 01/
│   ...
└── poses/
    ├── 00.txt
    ├── 01.txt
    ...

---

3. Train VAE

Edit the dataset path in vae/vae_v17_kitti.py:

root_configs = {
    "path/kitti_odometry/dataset/sequences": {
        "TRAIN": [0, 1, 2, 3, 4, 5, 6, 7],
        ...
    }
}

Then launch distributed training:

torchrun --nproc_per_node=<NUM_GPUS> vae/vae_v17_kitti.py

Checkpoints are saved to vae/checkpoints/ and visualizations to vae/fig/.

Alternatively, download the pretrained VAE checkpoint: vae_epoch_80.pth

---

4. Precompute Dataset

4.1 Precompute VAE Latents

Edit the paths in vae/precompute_vae_onlylidar.py:

kitti_root = "path/dataset/kitti_odometry/dataset"
output_root = "path/dataset_processed/kitti_odometry_vae_train"

Then run:

python vae/precompute_vae_onlylidar.py

This encodes each LiDAR frame into a VAE latent and saves it as a .pt file.

4.2 Precompute Ego Poses

Edit the paths in vae/precompute_vae_lidar_pose.py:

kitti_root = "path/dataset/kitti_odometry/dataset"
poses_root = "path/dataset/kitti_odometry/dataset/poses"
output_root = "path/dataset_processed/kitti_odometry_vae_train"

Then run:

python vae/precompute_vae_lidar_pose.py

This saves per-frame ego pose matrices as *_egopose.pt files alongside the latents.

After both steps, the processed dataset directory should look like:

kitti_odometry_vae_train/
└── sequences/
    ├── 01/
    │   ├── 000000.pt
    │   ├── 000000_egopose.pt
    │   ├── 000001.pt
    │   ├── 000001_egopose.pt
    │   ...

---

5. Train Diffusion Model

Edit the dataset path in train.py:

root_dirs = ["path/dataset_processed/kitti_odometry_vae_train"]

Also set the VAE checkpoint path:

model_path = "vae/checkpoints/vae_epoch_80.pth"

Then run:

accelerate launch train.py

Checkpoints and TensorBoard logs are saved to logs/diffusion/kitti/spherical-1024/<timestamp>/.

Alternatively, download the pretrained diffusion checkpoint: diffusion_0001200000.pth

---

6. Generate Test Samples

Edit the dataset path in generate_and_save.py:

root_dirs = ["path/dataset_processed/kitti_odometry_vae_train"]

Then run:

python generate_and_save.py \
    --ckpt logs/diffusion/kitti/spherical-1024/<timestamp>/models/diffusion_0001200000.pth \
    --output_dir ./results \
    --num_samples 6701 \
    --sampling_steps 256 \
    --seed xx

Generated point clouds are saved as .bin files under --output_dir with the structure:

results/
├── 0000_08/
│   ├── 000036.bin
│   ├── 000042.bin
│   ...
├── 0001_08/
...

---

7. Prepare Ground Truth Point Clouds

Edit the paths in vae/precompute_lidar.py:

kitti_root = "path/dataset/kitti_odometry/dataset"
output_root = "path/dataset_processed/kitti_odometry_gt_test"

Then run:

python vae/precompute_lidar.py

This converts raw KITTI LiDAR frames to the same xyz .bin format as the generated samples, for fair comparison.

---

8. Evaluate

python test_multiframe_kitti.py \
    --pred-dir ./results \
    --gt-dir path/dataset_processed/kitti_odometry_gt_test \
    --output ./results_kitti.txt

Metrics reported:

• Chamfer Distance (CD)
• Chamfer Distance Inner (CD-inner)
• L1 Error (mean and median)
• AbsRel Error (mean and median)

This project is undergoing internal business review by the relevant department. Where possible, I will continue to open-source the non-commercial parts. Currently, the 64-line content has already been open-sourced. If you are interested, you can contact me through e-mail for more information.

---

Acknowledgements

This work builds upon the following open-source projects:

• R2DM
• LiDM
• 4D-Occ

We sincerely thank the authors for making their code publicly available.

---

Citation

If you find it helpful, we would appreciate it if you could cite our work involved in this project.

@inproceedings{wu2026gem,
  title={GEM: Generating LiDAR World Model via Deformable Mamba},
  author={Wu, Yang and Liu, Zhaojiang and Meng, Qiang and Liu, Youquan and Weng, Renliang and Qian, Jianjun and Yang, Jian and Xie, Jin},
  booktitle={Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition},
  pages={24227--24236},
  year={2026}
}

@inproceedings{wu2025weathergen,
  title={WeatherGen: A unified diverse weather generator for LiDAR point clouds via spider mamba diffusion},
  author={Wu, Yang and Zhu, Yun and Zhang, Kaihua and Qian, Jianjun and Xie, Jin and Yang, Jian},
  booktitle={Proceedings of the Computer Vision and Pattern Recognition Conference},
  pages={17019--17028},
  year={2025}
}
