dsh-mysql

August 30, 2026 · View on GitHub

MySQL connections and guarded database tools for DeepSeek Harness
Configure connections once, choose one per conversation, and let your agent inspect or query the selected database.

English | 中文

dsh-mysql is a profile bundle for DeepSeek Harness (DSH). It adds a settings page for multiple MySQL connections, a per-session connection picker beside the composer, and three guarded tools that every agent preset can use. No preset edits are required.

Data boundary: connection settings and passwords stay in your local DSH storage. Database schema and query results are sent to the LLM provider as ordinary tool output when the agent uses a database tool.

At a glance

Surface	What it provides
Settings → MySQL 数据库	Add, edit, delete, and test connections. Configure host, port, user, password, default database, table scope, and write permission.
Composer database button	Choose the connection for the current session. The selection is shown beside the input and can be changed at any time.
Agent tools + runtime context	`mysql_tables`, `mysql_query`, and `mysql_execute`, plus a per-turn context snapshot describing the selected connection and readable tables.

Features

Multiple connections: keep separate development, staging, or production data sources in one DSH installation.
Per-session selection: changing the connection in one conversation does not silently switch another conversation.
Schema-first workflow: mysql_tables exposes readable columns, types, nullability, keys, and comments before a query is written.
Read-only by default: write access is an explicit per-connection setting and is disabled by default.
Local-first configuration: the browser receives a safe connection view with hasPassword, never the stored password.
No preset changes: the tools are registered globally by the profile bundle and are available under every agent preset.

Agent tools

Tool	Accepted input and behavior
`mysql_tables`	Lists columns from the selected database through `information_schema`. Optional `table` filtering is case-insensitive. Results respect the configured table allowlist.
`mysql_query`	Executes one read-only `SELECT`, `SHOW`, `DESCRIBE`/`DESC`, or `EXPLAIN` statement with optional `?` parameters. It rejects multi-statement SQL, applies the table-scope check, and returns up to 2,000 serialized rows with a `truncated` flag. A `MAX_EXECUTION_TIME(15000)` hint is added to leading `SELECT` statements.
`mysql_execute`	Executes one `INSERT`, `UPDATE`, or `DELETE` statement with optional `?` parameters. It requires `allowWrite: true`; DDL, transaction-control statements, multi-statement SQL, and other statement types are rejected.

A typical read-only request is:

Use mysql_tables to inspect the available schema first, then use mysql_query to answer my question. Do not modify data.

Requirements and compatibility

A DSH installation with the Web profile and Node.js 20 or newer.
A MySQL-compatible server reachable through the configured TCP host and port.
The connection form currently supports host, port, username, password, default database, table allowlist, and write permission. It does not expose SSL/TLS, Unix socket/named-pipe, or charset options.
The MAX_EXECUTION_TIME optimizer hint is intended for MySQL versions that support it (MySQL 5.7.8+). MariaDB may handle this hint differently; SHOW, DESCRIBE, and EXPLAIN do not receive the hint.
mysql_tables discovers tables in DATABASE(). Configure a default database if you want schema discovery; a connection without one can return an empty table list.

Install, update, or remove

Install from GitHub

dsh plugin --profile web add github:1321928757/dsh-mysql#v0.1.10

Install from npm

Use this after dsh-mysql is available in the npm registry:

dsh plugin --profile web add dsh-mysql

PowerShell installer

The repository also provides a Windows installer that checks for dsh, prepares a pinned pnpm helper under %USERPROFILE%\.dsh-tmp, and installs the selected GitHub tag into the web profile:

irm https://raw.githubusercontent.com/1321928757/dsh-mysql/v0.1.10/scripts/install.ps1 | iex

After installation, restart dsh web. Then open Settings → MySQL 数据库, add and test a connection, and select it from the database button beside the composer.

Verify that the bundle is in the profile:

dsh --profile web --dump-config | findstr dsh-mysql

Remove it with:

dsh plugin --profile web remove dsh-mysql

Update or install from a local checkout

Update the installed package from GitHub:

dsh plugin --profile web update dsh-mysql@latest

For local development, install the checkout or a packed tarball into a separate profile first:

dsh plugin --profile demo add E:\path\to\dsh-mysql
dsh --profile demo --dump-config

Quick start

Open Settings → MySQL 数据库 and click 添加连接. Fill in the host, port, username, password, and default database. Optionally add readable table names and enable write permission only when needed. Test the connection, then save it.
Open a conversation and click the database button on the left of the composer. Select a connection for that session. If exactly one connection exists, it is selected automatically.
Ask a database question. The agent can inspect the schema with mysql_tables, read with mysql_query, and use mysql_execute only for an explicitly writable connection.

Screenshots

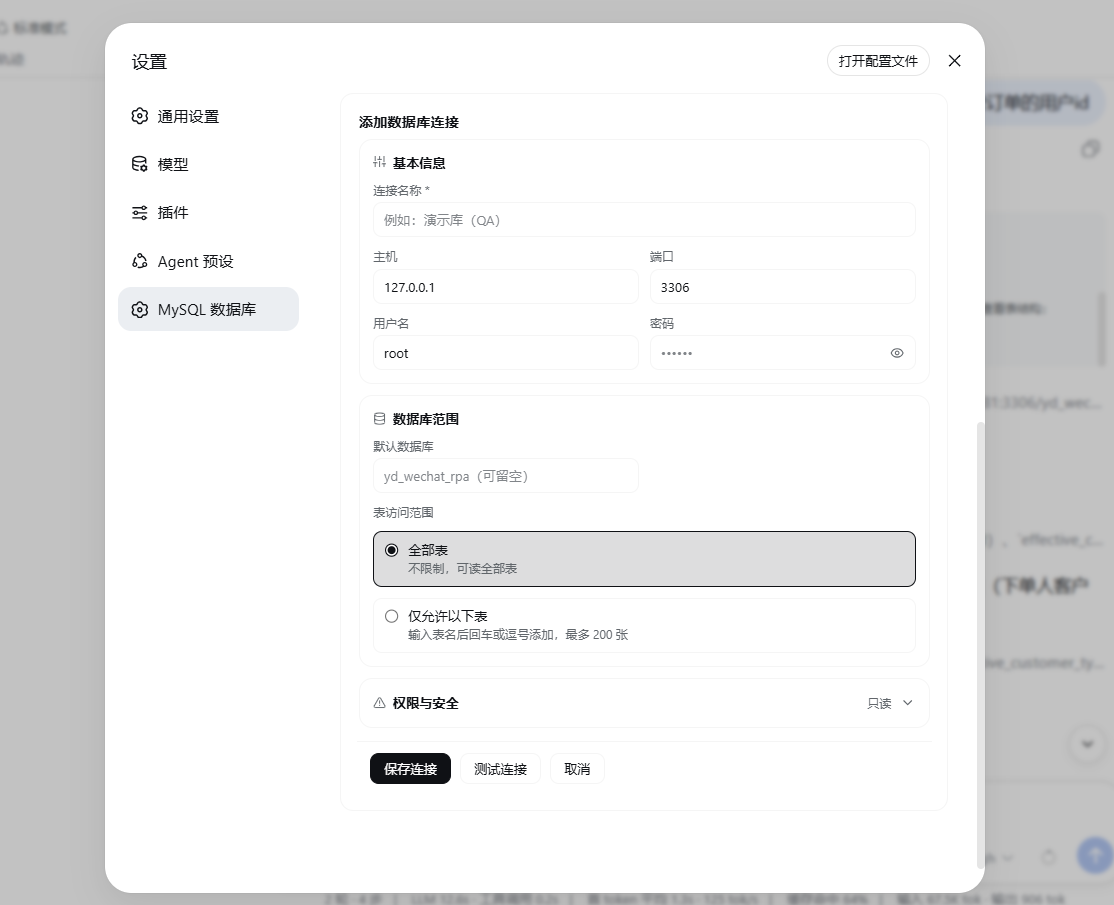

Configure a connection

The settings page groups connection details, database scope, and permissions. Read-only is the default.

MySQL settings page

Select a connection for a session

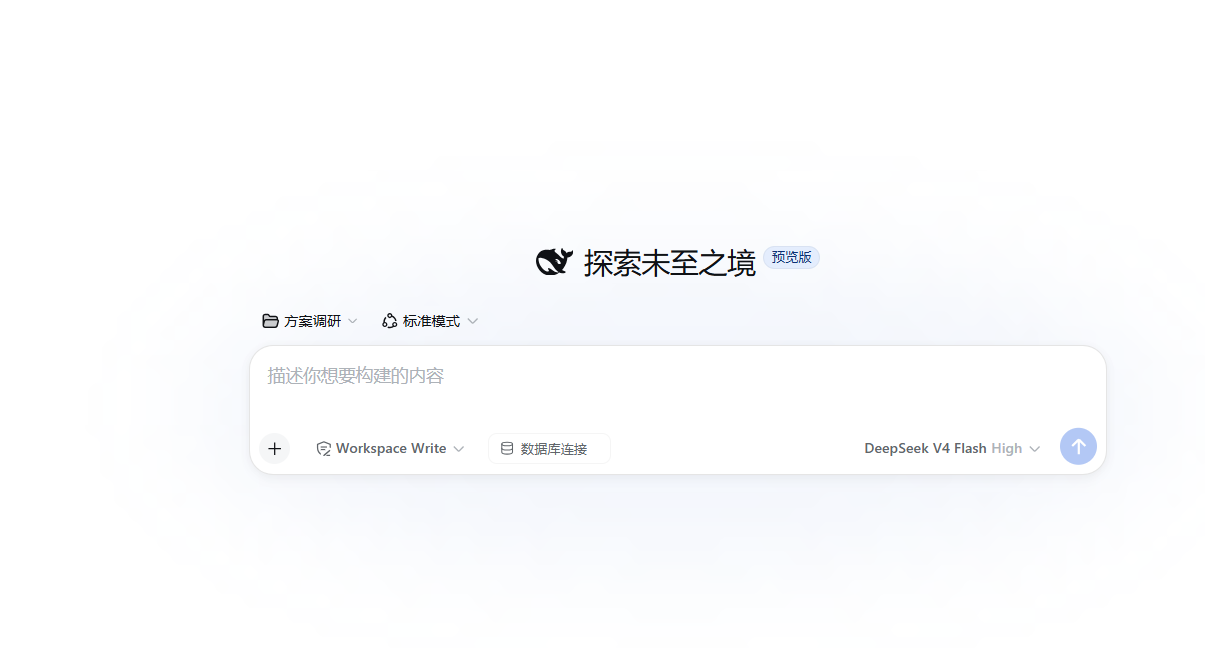

The composer shows the database control even before a connection is selected:

Composer without a selected database connection

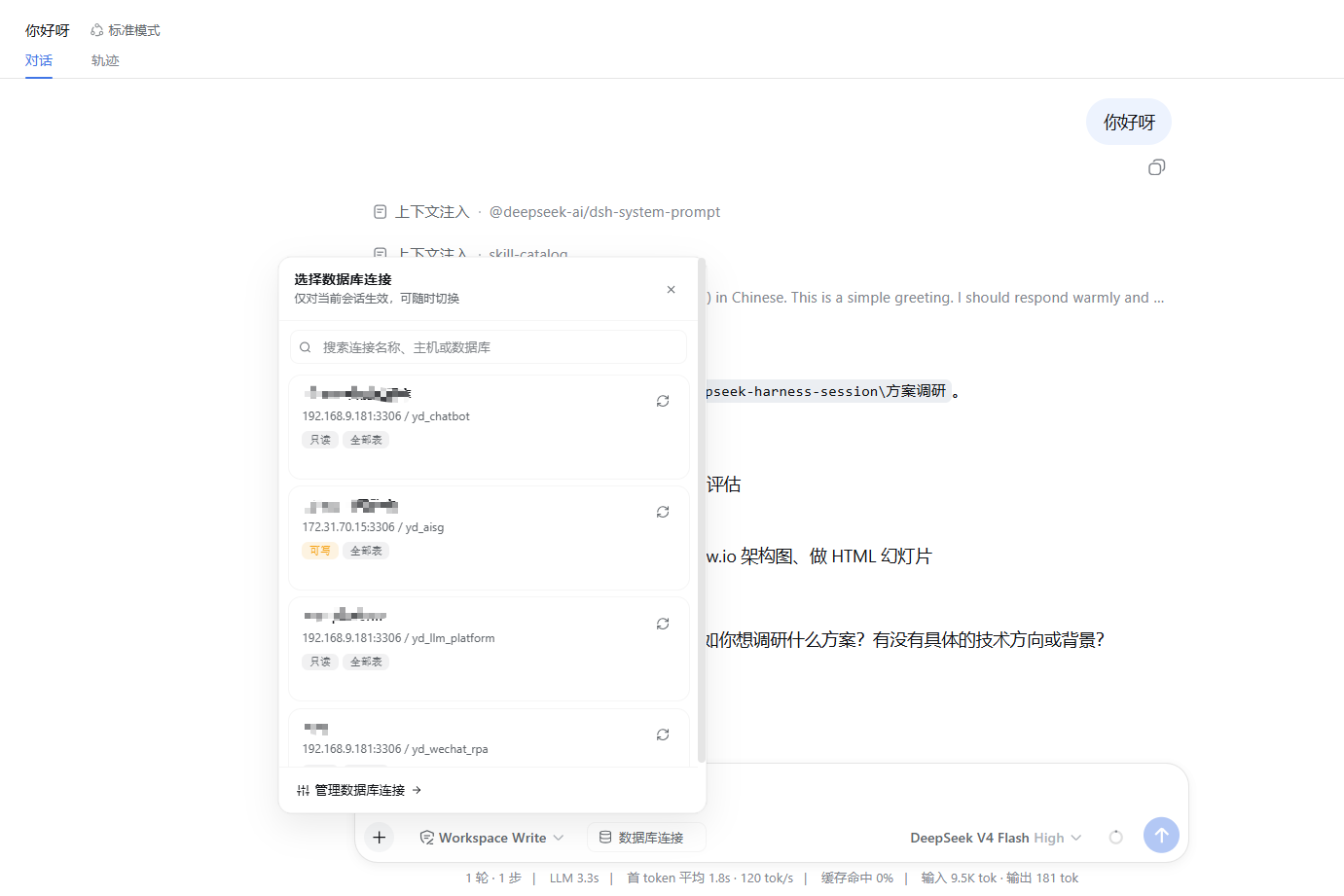

Click it to search and choose from the configured connections:

Per-session database connection picker

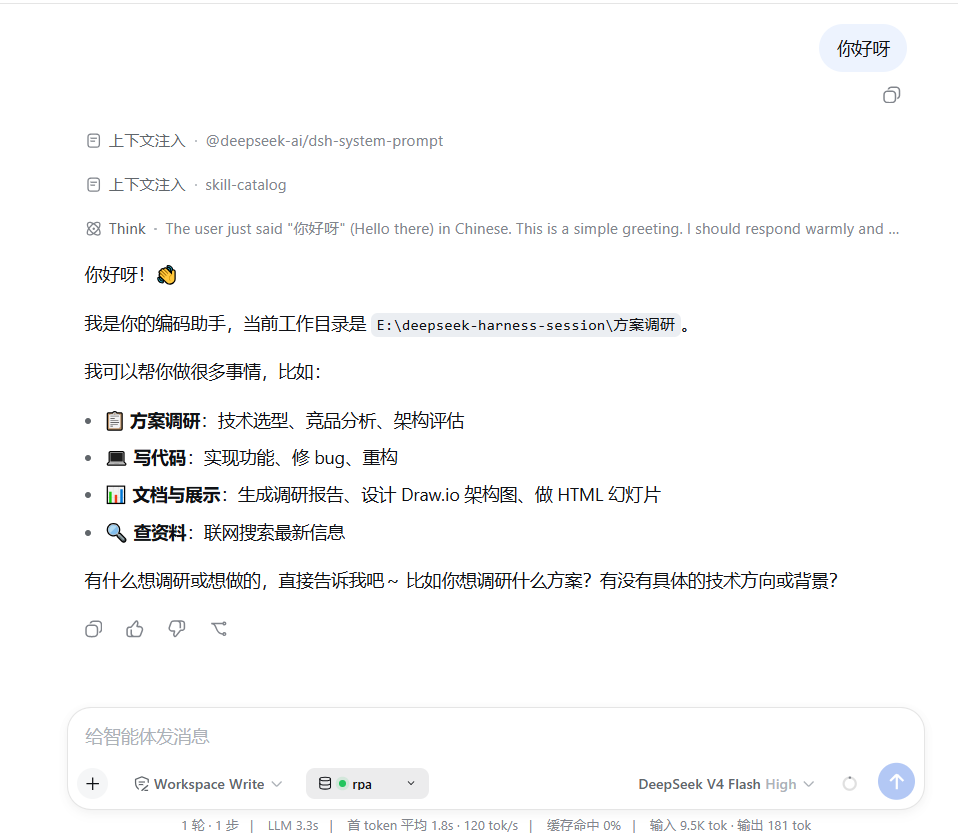

After selection, the connection name and status appear in the composer:

Composer with a selected database connection

See the selected connection in context

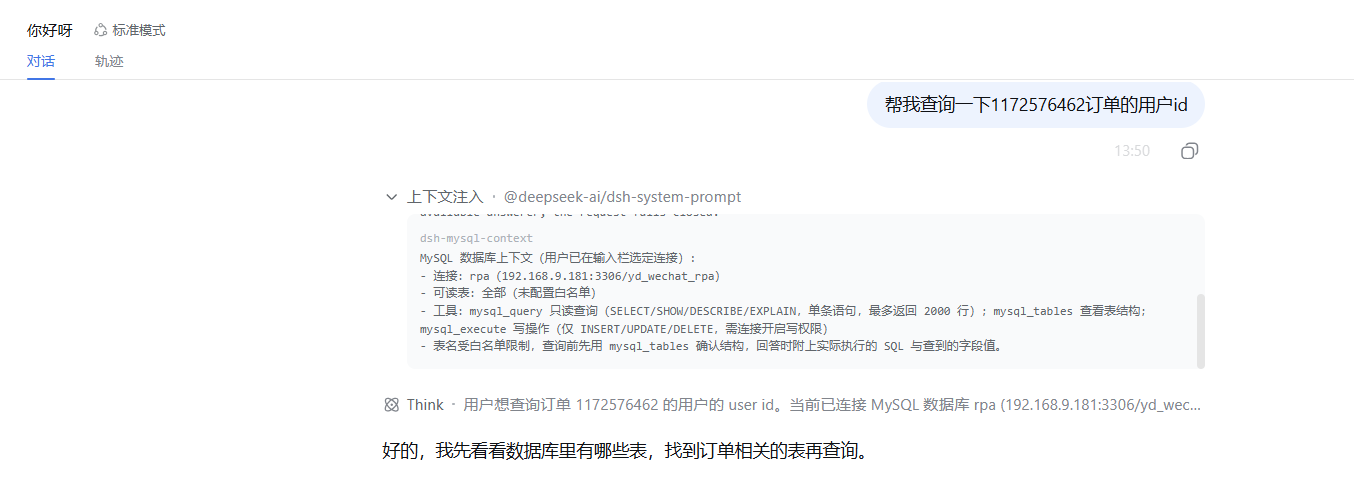

The selected connection and readable table scope are appended as a dynamic context section for the current turn:

Dynamic database context injected into the prompt

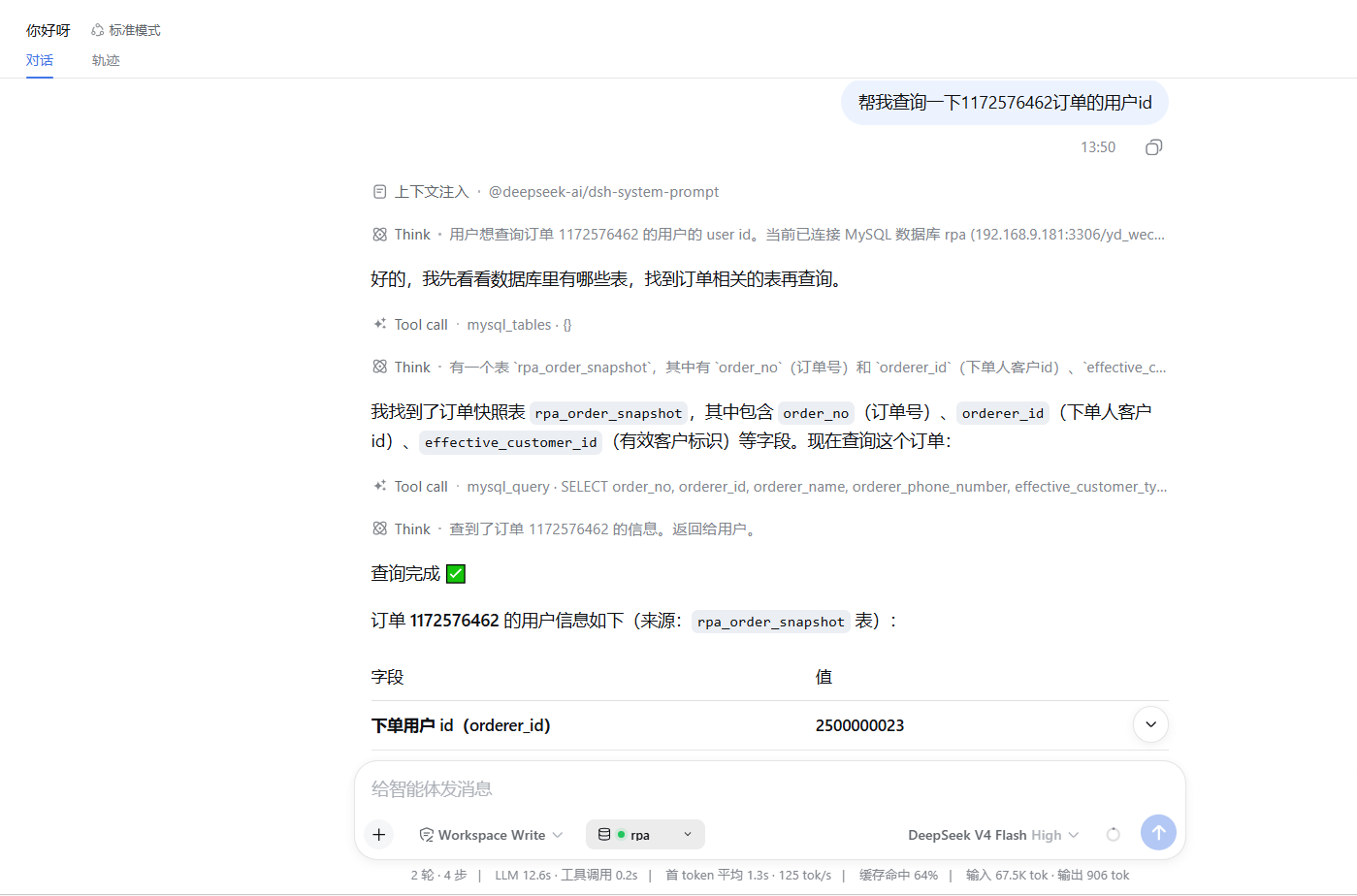

Let the agent inspect and query

The agent can inspect the schema first and then query the selected database:

Agent querying MySQL in a conversation

Security and permissions

The plugin uses multiple guardrails, but it does not replace database permissions. Use a dedicated MySQL account with the least privileges possible; for read-only work, a SELECT-only account is recommended.

Guardrail	What is enforced	Important boundary
Statement type	`mysql_query` accepts read statements; `mysql_execute` accepts only `INSERT`/`UPDATE`/`DELETE`.	The tool layer is not a general SQL console.
Write permission	`mysql_execute` requires the selected connection's `allowWrite` flag.	The switch is per connection and defaults to off.
DDL and multi-statement SQL	DDL, transaction/control statements, and multiple statements are rejected.	Use normal database administration tools for schema changes or transactions.
Table allowlist	Checks table references detected after `FROM`, `JOIN`, `UPDATE`, and `INTO`. An empty list means no configured table restriction.	This is a lexical check, not a full SQL parser. Forms such as `DESCRIBE t` or `SHOW CREATE TABLE t` do not use those reference keywords; combine the allowlist with database-level grants.
Result size	The serialized tool response contains at most 2,000 rows and reports `truncated: true` when rows were omitted.	The query is fetched before the response is truncated; this is not a server-side scan or network limit.
Credential exposure	Passwords are stored in local `connections.json`; the browser receives only `hasPassword`.	Query results, schema, and tool arguments are still sent to the configured LLM provider.

Passwords are stored as plain text in $DSH_HOME/storages/dsh-mysql/connections.json. Protect this file with operating-system permissions and do not commit or share it.

Known limitations

There is one active database selection per conversation session; selecting a connection does not change other sessions.
mysql_tables uses the connection's DATABASE() value, so schema discovery may be empty when no default database is configured. It does not browse arbitrary databases.
The table allowlist is intentionally lightweight and checks common table-reference positions rather than parsing every MySQL grammar form.
The 2,000-row limit applies to the returned JSON payload after the database response has been fetched.
mysql_execute does not provide transaction management, DDL, or a confirmation workflow. Enable write permission only for a narrowly scoped database account.
Connection configuration is TCP-oriented and has no UI for SSL/TLS, Unix sockets/named pipes, or character-set selection.

How it works

Composer / Settings UI
        │  browser slot + Typert RPC (remote.mysql.*)
        ▼
Host mysql service
        │  per-session selection + lazy mysql2 pool
        ├── local JSON: $DSH_HOME/storages/dsh-mysql/connections.json
        └── systemPrompt.context: selected connection + readable tables

Host bundle (lib/index.js) registers the three model tools, manages lazy mysql2 pools, persists connections, tracks the session selection, and provides the mysql service.
Typert manifest (lib/typert.host.js) exposes connection CRUD, testing, selection, and table-list methods to the browser through remote.mysql.*.
Browser bundle (lib/client.js) registers the conversation.input.left database control and the settings.section connection-management page. UI styles consume DSH --dsw-* theme tokens.
The selected connection is added through systemPrompt.context as a dynamic tail section, so switching connections does not rewrite the stable cached system-prompt prefix.

Migrating from a preset-embedded MySQL tool

If a preset previously embedded mysql_query or mysql_execute through a local tool row:

Install this plugin into the profile.
Remove the old MySQL tool row and connection configuration from the preset's agent.cordis.yml; keep the business persona text.
Restart dsh web, then recreate the connection in Settings → MySQL 数据库. The tool names are unchanged, so prompts that mention them continue to work.

FAQ and troubleshooting

The database button is missing

Restart the DSH Web process after installation or update. Then verify the profile composition with dsh --profile web --dump-config | findstr dsh-mysql. Make sure the plugin was installed into the same profile that you started.

“No MySQL connection is configured” or “this session has not selected a connection”

Open Settings → MySQL 数据库 and save at least one connection. In the conversation, click the database button and select a connection. A single saved connection is auto-selected, but multiple connections require an explicit per-session choice.

Connection tests fail

Check the host and port, credentials, default database, server reachability, and the MySQL account's network permissions. The plugin connects from the DSH host, not from the browser. For startup diagnostics, inspect $DSH_HOME/storages/dsh-mysql/boot.log.

The table list is empty

Set a default database in the connection form. mysql_tables queries information_schema.columns for table_schema = DATABASE() and will not enumerate another schema automatically.

A write, DDL, multi-statement, or allowlist query was rejected

Use mysql_query for one read statement and mysql_execute only for one INSERT/UPDATE/DELETE when allowWrite is enabled. Schema changes, transaction/control statements, multiple statements, and references outside the configured table scope are intentionally blocked. Remember that the allowlist is a lexical check; database-level grants remain the final boundary.

Does the browser receive my password?

No. The browser receives a safe connection view containing hasPassword, not the password value. The local JSON file still stores the password in plain text, so protect that file.

Development

Syntax-check each JavaScript file individually, run the shared-function tests, then pack a local artifact:

Get-ChildItem lib\*.js | ForEach-Object { node --check $_.FullName }
node test\shared.test.mjs
pnpm pack

Install the packed artifact into a scratch profile and verify the real bundle:

dsh plugin --profile demo add .\dsh-mysql-0.1.10.tgz
dsh --profile demo --dump-config

When releasing a new version, update the version in package.json, the $Rev value in scripts/install.ps1, the tagged install URLs in both README files, and screenshots.json if the screenshot set changes.

License

MIT. This project is not affiliated with DeepSeek. Installing the plugin runs third-party code on your machine; review the source before use.
