An open-source, containerised ROS2 Jazzy stack for autonomous agricultural robotics. This repository provides the drivers and orchestration for the Sowbot platform, featuring RTK-GNSS localisation and ESP32-based hardware control.

Development is led by the Agroecology Lab building on the core developed by Zauberzeug.

Reference open hardware stack(s) under development at Sowbot.co.uk in addition to orginal Zauberzeug Field Friend

Sowbot Roadmap

Branch: caatinga-dev | ROS 2 Jazzy | Upstream: zauberzeug/feldfreund_devkit_ros
Collaborators welcome. See CONTRIBUTING.md. Contact: sowbot.co.uk

Sowbot Feature Status

#	Feature	Description	Status	Phase
FOUNDATION				2025
F1	Containerised deployment	Full ROS 2 Jazzy stack managed via Docker and manage.py. Live volume mapping to /workspace. Build, full-build, and +sim build modes.	Done	2025
F2	Stable device addressing	fixusb.py with Jetson/generic architecture detection, kernel low_latency mode, and udev symlink generation. Writes .env consumed by all launch files.	Done	2025
F3	Teleop dashboard	NiceGUI web cockpit on :80. Three-tab interface: Nav (joystick, e-stop, topo map, node-drop, track mode), Mission (fields2cover corner entry, row plan generator stub, reorderable mission queue), System (telemetry, safety indicators, GPS leaflet map).	Done	2025
F4	ublox DGNSS driver	Dual F9P moving-base configuration with dynamic port assignment via fixusb.py.	Done	2026
F5	Diagnostics TUI	agbot-diagnostic.py terminal status view of all hardware topics. Run inside container via login.sh.	Done	2025
MVP FIELD				2026
M1	AOC platform integration	Demonstrates AOC platform abstraction on affordable ARM hardware accessible to smallholders.	In progress	2026
M2	Topological navigation + Nav2	LCAS topological_navigation (aoc_refactor branch) building in Dockerfile. RViz visualisation confirmed working. Self-contained navigation2.py with A* route planning, explicit state machine, and row_traversal / NavigateToPose / goal_align edge actions. fake_nav2_server simulator enables full pipeline testing without hardware; patched at runtime via manage.py to add /limbic_row_follow stub so row traversal segments complete in sim. Nav2 topic remapping handled via fusioncore (see M2a). Pending: Jazzy field validation.	In progress	2026
M2a	fusioncore Nav2 bridge	fusioncore provides the Nav2 topic remapping shim between LCAS topological_navigation and Nav2. Cloned, building in Dockerfile, fusioncore_node launched via devkit.launch.py. Pending: end-to-end test on live hardware.	In progress	2026
M3	Open-field row-crop scenario	Live node-drop workflow in UI: validates name + pose, writes updated YAML to /workspace/maps/, calls switch_topological_map with fallback to direct topic publish. Topo map for maize world auto-generated at container start via get_maize_topo.py (1D k-means on gt_map.csv). Pending: tmap2 authoring from real field survey.	~50% Done	2026
M4	RTK-GNSS localisation	Dual u-blox F9P moving-base configuration. ublox_mb+r_rover publishes /rover/ublox_nav_sat_fix_hp and /rover/ubx_nav_rel_pos_ned (NAV-RELPOSNED heading vector). topic_tools relay bridges fix to /gnss/fix; relposned_heading_shim converts NAV-RELPOSNED to sensor_msgs/Imu on /gnss/heading (ENU radians; publishes only when relPosValid + relPosHeadingValid flags set and baseline ≥ 0.3 m). fusioncore UKF fuses /gnss/fix + /gnss/heading + /odom/wheels → /fusion/odom + odom→base_link. ublox_single.launch.py added for single-receiver development. Pending: antenna lever-arm offset measurement, test on live hardware.	~70% Done	2026
M5	Dual-SBC ROS 2 stack	Both Avaota A1 boards (8× Cortex-A55, T527) run ROS 2 Jazzy with rmw_zenoh_cpp. Static peer Zenoh session over dedicated 1 GbE crossover. Multicast discovery disabled. Pending: zenoh_config.json peer config committed to both repos.	Planned	2026

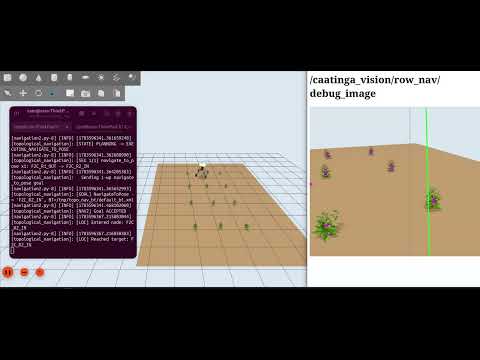

M6	Gazebo simulation	virtual_maize_field (ros2-gz branch) launches via sowbot_sim.launch.py into Gazebo Harmonic. sowbot_01.xacro (Amiga-NG primitive geometry URDF) spawned into the world. Topo map auto-generated on every container start. sim.launch.py accepts urdf:= arg to select robot model. UI provides native and browser (noVNC) Gazebo launch buttons. fake_nav2_server with /limbic_row_follow stub enables full end-to-end topo nav testing in sim without hardware.	In progress	2026
M7	Sentor safety monitoring	LCAS Sentor topic and node health monitoring. Publishes /safety/heartbeat and /warning/heartbeat. Cloned and building in Dockerfile. Pending: sowbot_monitor.yaml authoring, wiring into devkit.launch.py, smoke-test on live hardware.	~40% Done	2026
M8	Visual crop-row navigation	sowbot_row_follow package (caatingarobotics repo). ExG vegetation index + Otsu threshold, scan-window line fitting, Cherubini & Chaumette visual servoing on Neo SBC. Publishes /aoc/conditions/row_offset, /aoc/conditions/row_heading_error, and /aoc/heartbeat/neo_vision. limbic_row_follow_node.py runs on Limbic as a Nav2 NavigateToPose action server on /limbic_row_follow: Phase 1 enables Neo over the 1 GbE crossover (/row_follow/enable SetBool), monitors Neo heartbeat, visual servo drives /cmd_vel until within row_follow_handover_distance of goal; Phase 2 disables Neo then hands off to Nav2 for final approach and heading alignment. Cancel and heartbeat loss both safely disable Neo before aborting. Camera calibration (camera_height_m, camera_tilt_deg) required before field use.	~70% Done	2026
P1	STM32H7 + copper-rs MCU	Replace ESP32/Lizard DSL with STM32H745 running copper-rs statically-scheduled Rust firmware. Hard real-time motor PID, hardware safety interlocks.	Research	2027
P2	CANopen bus	ISO 11898 FDCAN at 500 kbit/s arbitration / 2 Mbit/s data phase. lely-core CANopen master on Limbic T527 native M_CAN peripheral. DSP402 drive profile.	Research	2027
P3	RT kernel + core isolation	PREEMPT_RT kernel on the Limbic System (Avaota A1 / T527) running LCAS topological_navigation (aoc_refactor) and Nav2. isolcpus=4-7 with RTK EKF on core 2 (SCHED_FIFO 60), AOC navigation on cores 4-6, watchdog on core 5. GbE/CAN IRQ affinity pinned to core 0.	Planned	2027
P4	ROFS image	Read-only rootfs for the Limbic System. Ubuntu Noble minimal or Yocto with RT kernel, pre-built LCAS topological_navigation (AOC branch), Nav2, and rmw_zenoh_cpp. Immutable field deployment — no colcon build on boot.	Research	2027
END-EFFECTORS				TBD
E1	Delta weeding module	Open-Weeding-Delta precision mechanical weeding end-effector. CANopen actuator node on delta controller.	Research	TBD
E2	LASER weeding module	Laudando LASER integration and validation on Sowbot. Requires E-Stop interlocking with CANopen safety chain.	Research	TBD
DATASETS & COLLABORATION				Ongoing
D1	UK open-field dataset	Field imagery and GNSS logs from UK agroecological farm conditions. Published under CC licence for training and benchmarking.	Planned	2026
D2	Caatinga biome dataset	Semi-arid row-crop imagery from Brazilian Caatinga conditions contributed by caatingarobotics. Validated on T527 AIPU.	Active	2026

Collaboration

This project is built on and aims to maintain upstream compatibility with zauberzeug/feldfreund_devkit_ros.

High Level navigation is developed from the work of Lincoln Centre for Autonomous Systems (LCAS) as part of the Agri-OpenCore open ROS 2 ecosystem for agricultural robotics.

Perception models, Nav2 stack, datasets and simulation environments are developed in collaboration with caatingarobotics, The Sowbot Jazzy fork is pending upstream merge.

⚠️ CRITICAL SAFETY WARNING:

This software is under active development and may be broken at any given moment. For a stable reference implementation see the upstream Zauberzeug project.

THIS SOFTWARE COULD CONTROL PHYSICAL HARDWARE CAPABLE OF PRODUCING SIGNIFICANT KINETIC FORCE.

1. EXPERIMENTAL STATUS: This branch ('sowbot') contains experimental code generated and refined with AI assistance. It has NOT undergone full-scale field validation.
2. STATUTORY NOTICE (UK): Usage of this software is at the user's sole risk. While standard open-source licenses apply, users are reminded that operating agricultural robotics requires a professional duty of care.
3. MANDATORY HARDWARE SAFETY: Under no circumstances should this software be used to control a robot of any size without a independent, hard-wired, physical Emergency Stop (E-Stop) system. Software-based stops (such as /estop/soft) are NOT a substitute for Category 0 or 1 hardware safety stops.
4. NO LIABILITY: To the extent permitted by the laws of England and Wales, the contributors exclude all liability for property damage, crop loss, or indirect consequential damages.

Health Warning

This repo may contain traces of LLM slop, We've done our best to mitigate this. If you are allergic to slop, please help us refactor.

Quick Start

1. Clone the Repository

Open a terminal on your host machine and download the workspace:

git clone -b caatinga-dev https://github.com/Agroecology-Lab/feldfreund_devkit_ros.git
cd feldfreund_devkit_ros

2. Build & Launch

Use the management script to build the ROS 2 workspace and launch the robot stack. This script automatically handles hardware discovery and port permissions:

./manage.py full-build
xhost +local:docker
./manage.py

Access http://localhost to access the WebUI

If you'd like to use Gazebo then add a +sim argument to your build instruction

./manage.py full-build +sim
xhost +local:docker
./manage.py

*Note if you are using a Mac drop the xhost line, you'll still be able to access GUI tools via a browser.

Management & Tools

manage.py

The primary entry point for the system. While it runs the full stack by default, it supports several optional arguments for development:

Command	Logic / Argument	Resulting Action
./manage.py	(No arguments)	Runs run_runtime() immediately using live volumes.
./manage.py build	build	Runs run_build(full=False). Re-compiles ROS code.
./manage.py full-build	full-build	Runs run_build(full=True). Cleans system & Re-installs all system dependencies.
./manage.py neo	neo	Runs neo. Runs only the line following code for the second 'neo'(cortex) perception SBC.

Interactive Shell

To enter the running container for debugging or manual ROS 2 commands:

./login.sh

Diagnostics

If hardware is connected but topics are not flowing, run the diagnostic tool from inside the container:

After running ./login.sh

python3 agbot-diagnostic.py

You can also make it verbose with:

python3 agbot-diagnostic.py full

Sketch of MVP 2026 architecture

1. The Lizard Brain (RT Microcontroller)

• Hardware: ESP32 MCU.
• Software: Lizard DSL.
• Role: Hard Real-Time Execution.
• Function: Motor PID control and physical safety (bumpers/cliffs).
• I/O: 3.3V UART receiving $v, \omega$ via the teleop_lizard ROS 2 bridge.

2. The Limbic System (Executive)

• Hardware: Avaota A1 #1 (Allwinner T527).
• Software: ROS 2 Jazzy + topological_navigation (AOC branch).
• Role: Navigation Executive.
• Function: Runs the Topological Navigation stack. UBLOX sensors Manages the move_base sequence and Action on Condition (AOC) logic.
• I/O: Connects to u-blox via USB/UART using ublox_dgnss node. Translates graph goals into velocity commands for the Lizard Brain.

<1GbE interconnect between 2&3>

3. The Neo (Perception)

• Hardware: Avaota A1 #2 (Allwinner T527 + NPU).

• Software: Dockerised ROS 2 Jazzy.

• Role: Asynchronous Perception.

• Function: NPU-accelerated inference (YOLO/Object tracking) and sensor fusion.

• Connectivity: Native Zenoh integration via rmw_zenoh_cpp. Publishes environment states and "Conditions" to the Zenoh network.

                      |


Sketch of possible eventual ~2027 architecture

1. The Lizard Brain (Hardware Abstraction)

• Hardware: STM32 H7 MCU.
• Software: copper-rs.
• Role: Hard Real-Time Execution.
• Function: Manages motor PID loops and hardware-level safety interlocks.
• I/O: Canbus

2. The Limbic System (Executive)

• Hardware: Avaota A1 #1 (Allwinner T527).
• Software: RT kernel, Buildroot copper-rs
• Role: Deterministic Executive.
• Function: UBLOX sensors, Executes Action on Condition (AOC) logic for topological navigation.
• Data Entry: Directly consumes Zenoh keys from the Neo board to trigger mission state transitions and motion planning.

Core(s)	Role	Allocation Strategy
Core 0	OS / I/O	Handles kernel house-keeping, SSH, and the 1GbE driver interrupts.
Core 1	Zenoh / Neo-link	Dedicated to the Zenoh router and serializing incoming "Nice-to-Have" data.
Cores 2-6	The Pilot (Nav)	This is where the RTK EKF, Path Planner, and Task Graph live.
Core 7	The Bridge (Lizard)	Dedicated to SocketCAN and the high-frequency heartbeat to the STM32 (Lizard).

<1GbE interconnect between 2&3>

3. The Neo (Perception)

• Hardware: Avaota A1 #2 (Allwinner T527 + NPU).
• Software: Dockerised ROS 2 Jazzy & Dockerised CV packages
• Role: Asynchronous Perception.
• Function: NPU-accelerated inference (YOLO/Object tracking) and sensor fusion.
• Connectivity: Native Zenoh integration via rmw_zenoh_cpp. Publishes environment states and "Conditions" to the Zenoh network.

Licenses

Sowbot / feldfreund_devkit_ros — Dependency Licence Audit

Component	Source	Licence	Commercial use	Notes
feldfreund_devkit_ros (root)	your repo	MIT (©Zauberzeug GmbH & Agroecology Lab)	✅	Derivative of upstream field-friend; retain Zauberzeug notice
devkit_driver	local	MIT (©ATB)	✅	Retain ATB copyright notice
devkit_ui	local	MIT (©Agroecology Lab)	✅
devkit_launch	local	MIT	✅	Corrected from proprietary
sowbot_row_follow	caatingarobotics	BSD-2-Clause	✅	LICENSE file fixed to match header/metadata; ©PRBonn + ©Agroecology Lab
caatingarobotics (agro_robot_sim, caatinga_nav, caatinga_vision)	github.com/samuk	Apache-2.0	✅	Your fork (row_follow is the BSD-2 exception, above)
topological_navigation	LCAS (aoc_refactor)	Apache-2.0 (©LCAS)	✅	High-level planner
fusioncore	manankharwar	Apache-2.0	✅	GNSS fusion; patched in-build; retain NOTICE if present
virtual_maize_field	FieldRobotEvent (ros2-gz)	GPL-3.0	⚠️	Sim-only — must NOT be vendored into a shipped product
ublox_dgnss	aussierobots	Apache-2.0	✅	GNSS driver
sentor	LCAS (fork of francescodelduchetto/sentor)	MIT	✅	Monitoring node
ros2graph_explorer	nilseuropa	BSD-3-Clause	✅	Dev/debug graph inspector
Fields2Cover v2.0.0	Fields2Cover	BSD-3-Clause	✅	Built from source; pulls OR-tools (Apache-2.0) + GDAL (MIT)
lizard	Agroecology-Lab	MIT (©Zauberzeug GmbH)	✅	ESP32 tooling; retain Zauberzeug notice
YOLOX 0.3.0 + yolox_nano weights	Megvii	Apache-2.0	✅	Confirm weights terms for commercial use
PyTorch (CPU)	Meta	BSD-3-Clause	✅

===============================================================

Feldfreund DevKit ROS

(Below from original Zauberzeug forked repo)

Feldfreund DevKit ROS is a comprehensive ROS2 package that handles the communication and configuration of various Feldfreund components:

• Communication with Lizard (ESP32) to control the Feldfreund
• GNSS positioning system
• Camera systems (USB and AXIS cameras)
• Example UI to control the robot

All launch files and configuration files (except for the UI) are stored in the devkit_launch package.

Components

DevKit driver

The DevKit driver (based on ATB Potsdam's field_friend_driver) manages the communication with the ESP32 microcontroller running Lizard firmware - a domain-specific language for defining hardware behavior on embedded systems.

The package provides:

• config/devkit.liz: Basic Lizard configuration for DevKit robot
• config/devkit.yaml: Corresponding ROS2 driver configuration

Available ROS2 topics:

• /cmd_vel (geometry_msgs/Twist): Control robot movement
• /odom (nav_msgs/Odometry): Robot odometry data
• /battery_state (sensor_msgs/BatteryState): Battery status information
• /bumper/front_top (std_msgs/Bool): Front top bumper state
• /bumper/front_bottom (std_msgs/Bool): Front bottom bumper state
• /bumper/back (std_msgs/Bool): Back bumper state
• /estop/soft (std_msgs/Bool): Software emergency stop control
• /estop/front (std_msgs/Bool): Hardware front emergency stop state
• /estop/back (std_msgs/Bool): Hardware back emergency stop state
• /configure (std_msgs/Empty): Trigger loading of the Lizard configuration file

Camera System

The camera system supports both USB cameras and AXIS cameras, managed through a unified launch system in camera_system.launch.py that handles USB cameras, AXIS cameras, and the Foxglove Bridge for remote viewing.

The USB camera system provides video streaming through ROS2 topics using the usb_cam ROS2 package. Camera parameters can be configured through config/camera.yaml.

The AXIS camera system integrates with the ROS2 AXIS camera driver to support multiple IP cameras with individual streams. Each camera can be configured through config/axis_camera.yaml, with credentials managed through config/secrets.yaml (template provided in config/secrets.yaml.template). The cameras' authentication mode (basic or digest) might need to be configured - see AXIS Camera Authentication section for details.

The visualization system integrates with Foxglove Studio for remote camera viewing, supporting compressed image transport. The Foxglove Bridge is accessible via WebSocket connection on port 8765.

GNSS System

The GNSS system uses the Septentrio GNSS driver with the default config/gnss.yaml configuration. Available topics:

• /pvtgeodetic: Position, velocity, and time in geodetic coordinates
• /poscovgeodetic: Position covariance in geodetic coordinates
• /velcovgeodetic: Velocity covariance in geodetic coordinates
• /atteuler: Attitude in Euler angles
• /attcoveuler: Attitude covariance
• /gpsfix: Detailed GPS fix information including satellites and quality
• /aimplusstatus: AIM+ status information

DevKit UI

The example UI provides a robot control interface built with NiceGUI, featuring a joystick control similar to turtlesim. It gives you access to and visualization of all topics made available by the DevKit driver, including:

• Robot movement control through a joystick interface
• Real-time visualization of GNSS data
• Monitoring of safety systems (bumpers, emergency stops)
• Software emergency stop control

The interface is accessible through a web browser at http://<ROBOT-IP>:80 when the robot is running.

Docker Setup

Using Docker Compose

1. Build and run the container:

cd docker
docker-compose up --build

2. Run in detached mode:

docker-compose up -d

3. Attach to running container:

docker-compose exec devkit bash

4. Stop containers:

docker-compose down

The Docker setup includes:

• All necessary ROS2 packages
• Lizard communication tools
• Camera drivers
• GNSS drivers

Connect to UI

To access the user interface (UI), follow these steps:

1. Connect to the Robot's Wi-Fi: Join the robot's WLAN network.

2. Open the UI in your browser: Navigate to:

   http://<ROBOT-IP>:80


   (Replace <ROBOT-IP> with the actual IP address once you have it.)

Launch Files

The system can be started using different launch files:

• devkit.launch.py: Launches all components
• devkit_nocams.launch.py: Launches all components without the cameras
• devkit_driver.launch.py: Launches only Feldfreund DevKit driver
• camera_system.launch.py: Launches complete camera system (USB + AXIS) and Foxglove Bridge
• usb_camera.launch.py: Launches USB camera only
• axis_cameras.launch.py: Launches AXIS cameras only
• gnss.launch.py: Launches GNSS system
• ui.launch.py: Launches the example UI node

To launch the complete system:

ros2 launch devkit_launch devkit.launch.py

AXIS Camera Authentication

The AXIS cameras can be configured to use either digest or basic authentication. To check and configure the authentication mode:

1. Check current authentication settings:

curl --digest -u root:pw "http://192.168.42.3/axis-cgi/admin/param.cgi?action=list&group=Network.HTTP" | cat

2. Switch authentication mode (e.g., from digest to basic):

curl --digest -u root:pw "http://192.168.42.3/axis-cgi/admin/param.cgi?action=update&Network.HTTP.AuthenticationPolicy=basic" | cat

Replace root:pw with your camera's credentials and 192.168.42.3 with your camera's IP address. The authentication mode can be set to either basic or digest. Note that you should always use the --digest flag in these commands even when switching to basic auth, as the camera's current setting might be using digest authentication.

Quickstart guide

1. Clone the Repository

git clone https://github.com/zauberzeug/devkit_ros.git
cd devkit_ros

2. Validate Configuration

Before building, check and adjust if needed:

1. ROS2 Configuration (devkit_launch/config/devkit.yaml):

   • Verify serial_port matches your setup (default: "/dev/ttyTHS0")
   • Check flash_parameters for your hardware (default: "-j orin --nand")

2. Lizard Configuration (devkit_launch/config/devkit.liz):

   • Verify motor configuration matches your hardware
   • Check pin assignments for bumpers and emergency stops
   • Adjust any other hardware-specific settings

3. Build with Docker

./docker.sh u

4. Send Lizard Configuration

Once the system is running:

• Use the "Send Lizard Config" button in the UI
• Or use the /configure topic in ROS2

5. Ready to Go

Check the UI at http://<ROBOT-IP>:80 to control and monitor your robot.

Future features

This repository is still work in progress. Please feel free to contribute or reach out to us, if you need any unimplemented feature.

• Complete tf2 frames
• Handle camera calibrations
• Robot visualization
