compose

Pure Go multi-process composition library
Independent processes render UI content into offscreen buffers, and a single
compositor process composes them onto one display. Zero CGO.
First-class for gogpu/gg and gogpu/ui — works with any Go rendering library, or even non-Go modules speaking the wire protocol.

---

Installation

go get github.com/gogpu/compose

What is compose?

The compose library lets Go applications combine content from several independent processes onto a single display.

Each module is a separate OS binary that renders into an offscreen buffer using gogpu/gg primitives or gogpu/ui widgets, then ships pixels over a Unix socket or shared memory ring buffer to a compositor process. The compositor positions and blits each module's frame onto the screen at its assigned slot.

This gives you:

• Process isolation — a crash in one module never takes down the display
• Push and pull delivery — modules push frames whenever data changes, or render on-demand via compositor request. Mailbox semantics: latest frame always wins (Android BufferQueue / Vulkan MAILBOX pattern)
• Hot-pluggable modules — start, stop, replace, and update individual modules without restarting the compositor
• Cross-language modules — anything that can write RGBA to a Unix socket can participate, not just Go
• Independent module lifecycles — each module ships, releases, and updates on its own schedule
• Cross-platform — Linux, macOS, Windows, FreeBSD as first-class targets. Windows supports the Unix domain socket transport natively via AF_UNIX (since Windows 10 1803, April 2018), so the same net.Listen("unix", ...) works on every desktop OS. Future: Redox OS.
• Zero CGO — Pure Go on the wire and on every supported platform. Shared memory uses POSIX mmap on Unix-likes and CreateFileMapping on Windows, behind a unified Go interface

package main

import (
    "github.com/gogpu/compose"
    "github.com/gogpu/gg"
)

func main() {
    // Module side: render a 400x120 frame, ship it to the compositor
    client, _ := compose.Dial("/tmp/compose.sock")
    defer client.Close()

    dc := gg.NewContext(400, 120)
    dc.ClearWithColor(gg.Transparent)
    dc.SetRGB(1, 1, 1)
    dc.DrawString("Hello from module", 20, 60)

    client.PublishFrame(compose.Frame{
        Name:   "hello-module", // human-readable; the wire ID is assigned at handshake
        Pixels: dc.Image(),
    })
}

// Compositor side: listen for module frames, composite on render tick
srv, _ := compose.Listen("/tmp/compose.sock")

// Option A: event-driven (callback fires on every frame receipt)
srv.OnFrame(func(f compose.Frame) {
    layout.Place(f.Name, f.Pixels)
})

// Option B: render-tick (sample latest frame from each module — mailbox semantics)
frames := srv.Snapshot()
for id, frame := range frames {
    compositor.Blit(id, frame)
}

Unix socket transport, wire protocol v1, LZ4 compression, pull-based flow control. See the Roadmap for current progress.

Why a separate library?

The compose library deliberately lives outside gogpu/ui and gogpu/gogpu:

• Not UI-specific. A module can render with gg, with ui, or with any third-party Go rendering code. It can even be written in another language and pipe raw RGBA into the socket. Anchoring this in a UI library would be the wrong scope.
• Not app-framework specific. gogpu is about "one process renders one window". Multi-process composition is a different problem area with different lifecycle, trust, and protocol concerns.
• Platform-specific dependencies belong in their own module. Unix domain sockets, shared memory primitives (mmap on Unix, CreateFileMapping on Windows), ring buffers, build-tagged transport implementations — users of the UI framework should not pay for them transitively.
• The IPC protocol is a stable compatibility surface. It needs its own versioning discipline and release cadence so that protocol changes do not force a UI framework release and vice versa.
• Precedent. Qt ships Qt Remote Objects as a separate module. GTK ships Broadway as a separate display backend. Flutter separates Engine from Framework. Mature UI ecosystems consistently separate infrastructure layers from widget layers.

How is this different from multi-window?

Concern	Multi-window in gogpu	Multi-process compositor (this library)
Processes	1	N + 1
GPU Devices	1 shared	N independent
Resource sharing	pipelines, textures, buffers	only pixels via IPC
Trust model	full trust between windows	process isolation
Crash isolation	whole app exits	one module dies, compositor lives
Cross-language	Go only	any language with POSIX sockets
Hot-reload	not needed (one binary)	first-class concern
Communication	function calls (zero cost)	IPC framing (small latency)
Use cases	IDEs, dialogs, multi-doc editors	smart mirrors, kiosks, modular dashboards, plugin hosts

The two are layers, not alternatives. A compose-based application can use multi-window internally if its compositor process needs to span multiple physical monitors. A module can use multi-window internally if it wants sub-windows. They compose cleanly.

Use cases

• Smart mirrors and kiosks — modular displays where third-party modules render time, weather, calendars, notifications, transit, news
• Modular dashboards — independent data sources (each as its own process, possibly on different teams or repos) feeding one operations display
• Plugin hosts — applications that load untrusted third-party plugins and need crash containment
• Cross-language UIs — Go compositor with modules written in Rust, Python, or C
• Embedded HMIs — industrial control panels with hot-pluggable functional blocks
• Live event displays — concert visuals, sports broadcasts, conference signage with independently-developed segments

Architecture

                 ┌────────────────────────────────────┐
                 │   Display  (one physical screen)   │
                 └─────────────────┬──────────────────┘
                                   │
                 ┌─────────────────┴──────────────────┐
                 │   Compositor process               │
                 │   (gogpu window owns the surface)  │
                 │                                    │
                 │   • accepts module connections     │
                 │   • assigns slots in the layout    │
                 │   • blits incoming frames          │
                 │   • handles hot-plug & lifecycles  │
                 └────┬────────────┬────────────┬─────┘
                      │            │            │
                Unix socket   Unix socket   shared memory
                      │            │            │
        ┌─────────────┴──┐ ┌───────┴──────┐ ┌───┴───────────┐
        │  Clock module  │ │ Weather mod. │ │ Notification  │
        │                │ │              │ │   module      │
        │  gg primitives │ │ gg primitives│ │ ui widgets    │
        │  1 Hz · static │ │ 0.1 Hz       │ │ 60 Hz · anim. │
        │  own process   │ │ own process  │ │ own process   │
        │  own GPU       │ │ own GPU      │ │ own GPU       │
        └────────────────┘ └──────────────┘ └───────────────┘

Each module owns its own process, its own GPU device (if it uses GPU at all), its own crash domain, and its own release lifecycle. The compositor is the only process that touches the actual display surface.

IPC transports

Pixels travel through one of two transports, chosen per module:

Transport	Best for	Throughput	Setup
Unix domain socket	Static / low-rate modules (clocks, weather, calendars)	Hundreds of MB/s on Pi-class hardware	Zero — just connect
Shared memory ring buffer	Animated / high-rate modules (notifications, video, charts)	Limited only by memory bandwidth, zero copy	mmap (POSIX) or CreateFileMapping (Windows) behind a unified interface

Cross-platform support: Linux, macOS, FreeBSD, and Windows 10+ (which gained AF_UNIX support in the 1803 release, April 2018, so Go's net.Listen("unix", ...) works natively on Windows). Future: Redox OS when its Go toolchain matures.

The library deliberately avoids Linux-specific kernel APIs (io_uring, eventfd, Linux-specific shm segments) so the design ports cleanly across all desktop OSes. Where POSIX and Windows diverge — fd passing for shared memory is SCM_RIGHTS on POSIX and named handles on Windows — a thin Go interface with build tags hides the difference from module authors.

Wire protocol v1

64-byte fixed header, little-endian, cache-line aligned:

Offset	Field	Size	Description
0	Magic	4B	0x434F4D50 ("COMP")
4	Version	2B	Protocol version
6	MsgType	1B	Frame, Handshake, Ack, FrameRequest, Resize, Disconnect
7	Flags	1B	DirtyValid, Compressed, Keyframe
8	ModuleID	8B	Compositor-assigned
16	Sequence	8B	Monotonic frame counter
24	Timestamp	8B	Monotonic nanoseconds
32	Width	2B	Frame width
34	Height	2B	Frame height
36	Stride	4B	Bytes per row
40	DirtyRect	8B	x, y, w, h (2B each)
48	PixelFormat	1B	RGBA8, BGRA8
49	Compression	1B	None, LZ4, Zstd
50	Reserved	6B	Future use
56	PayloadSize	4B	Compressed payload bytes
60	UncompressedSize	4B	Original pixel bytes

Followed by PayloadSize bytes of pixel data (RGBA premultiplied, optionally LZ4-compressed).

The protocol is the stable compatibility surface of compose. Versioning is independent from the rest of the gogpu ecosystem so that protocol changes do not force a UI framework release.

Roadmap

Phase	Features	Status
Phase 1	Wire protocol v1, Unix socket transport, LZ4 compression, public API	Complete
Phase 2	Reference examples: compositor + clock + notification (multi-process)	Next
Phase 3	Shared memory ring buffer transport (zero-copy)	Planned
Phase 4	Delta frames, compression negotiation	Planned
Phase 5	Multi-screen layout, layered z-order, fade transitions	Future
Phase 6	Cross-language module SDK (C header, Rust crate, Python)	Future

Design principles

1. Example first, library second. The reference example proves the pattern with real users before any API freezes. Library extraction happens after at least two real use cases agree on the shape.
2. POSIX only. No Linux-specific kernel APIs. Portable to Redox OS, FreeBSD, and other POSIX systems.
3. Zero CGO. Pure Go transports, pure Go protocol, single binary deployment per module.
4. Process isolation as a feature, not an accident. Crashes contained, modules hot-swappable, third-party modules sandboxed by default.
5. Independent releases. The compose library versions independently from gogpu, ui, and gg. The wire protocol has its own versioning discipline.
6. Language-agnostic at the wire. A module can be a Rust binary or a Python script as long as it speaks the protocol.

Inspiration

The design of compose is informed by:

• Android SurfaceFlinger — the system compositor that combines layers from independent processes onto Android displays
• Wayland compositors — wlroots, smithay, KDE KWin, GNOME Mutter
• MagicMirror² — the JavaScript / Electron smart mirror project that the first user of compose is rewriting in Go
• Qt Remote Objects — Qt's process-isolated component framework
• GTK Broadway — GTK's HTML5 display backend, which composes widget pixels remotely
• Flutter Engine vs Framework split — the architectural separation between the rendering substrate and the UI toolkit

Status and contributing

The compose library ships a working Unix socket transport with wire protocol v1, LZ4 compression, pull-based flow control, and hot-plug module lifecycle.

Known users: KiGo (modular Go application using offscreen rendering + multi-process composition).

If you have a use case for multi-process composition in Go, please join the compose RFC discussion or open an issue describing your scenario.

Part of the GoGPU Ecosystem

The compose library is part of GoGPU — a Pure Go GPU computing ecosystem.

Library	Purpose
gogpu	Application framework, windowing, multi-window
wgpu	Pure Go WebGPU (Vulkan/Metal/DX12/GLES)
naga	Shader compiler (WGSL → SPIR-V/MSL/GLSL/HLSL/DXIL)
gg	2D graphics with GPU acceleration
g3d	3D rendering (scene graph, PBR, GLTF)
ui	GUI toolkit (22+ widgets, 4 themes)
compose	Multi-process composition (this library)
systray	System tray (Win32/macOS/Linux)

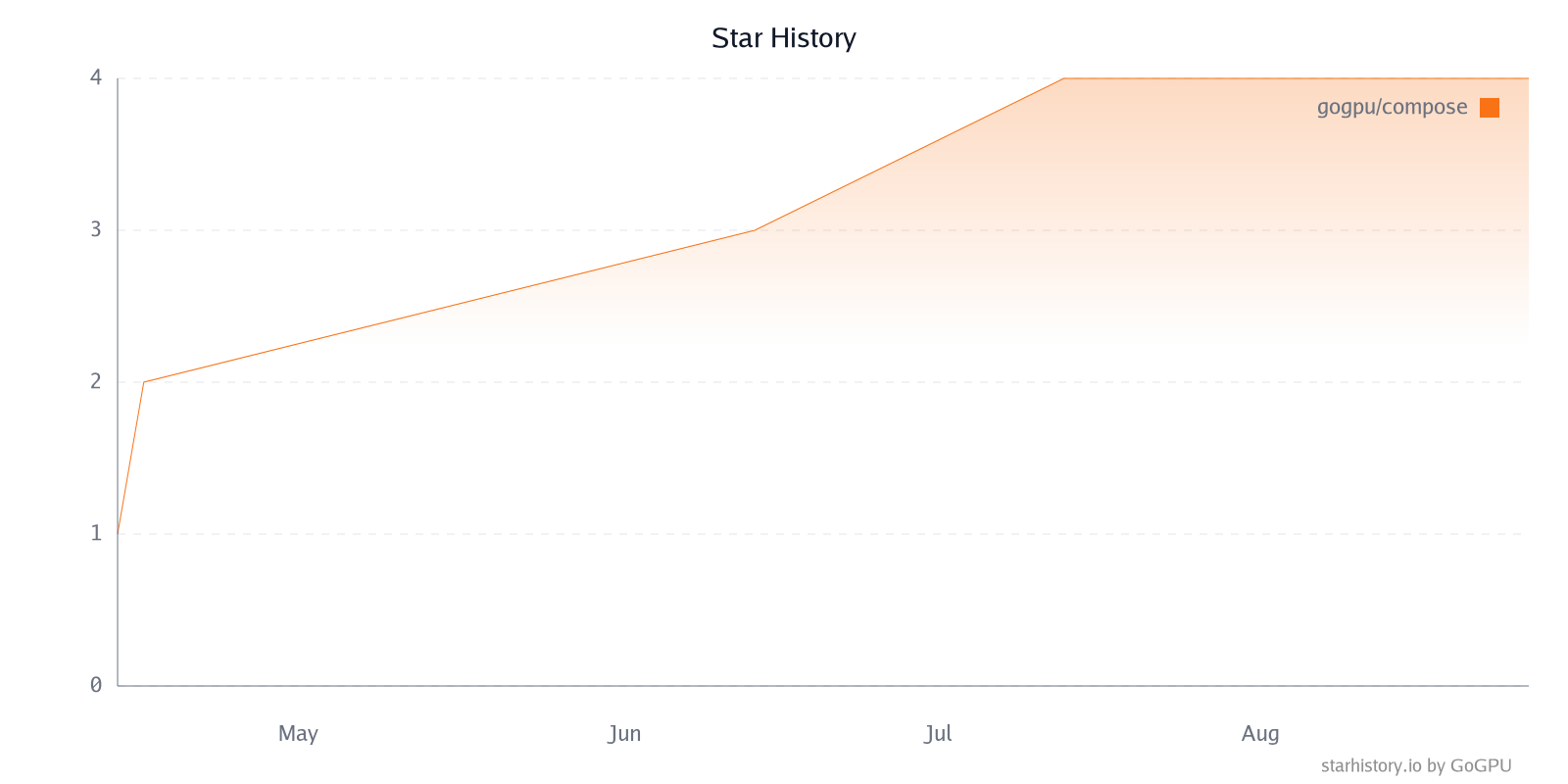

Star History
